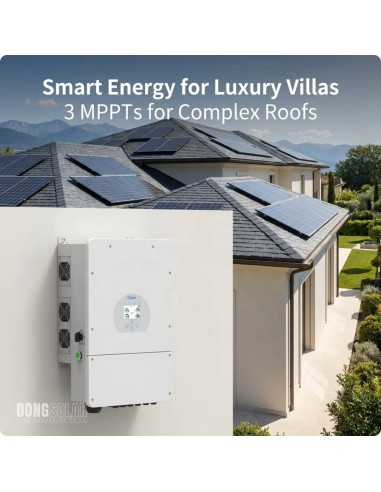

DEYE 10kW Hybrid Inverter SUN-10K-SG02 LP1-EU-AM3 | Single Phase

DEYE 10kW Hybrid Inverter SUN-10K-SG02 LP1-EU-AM3 | Single Phase

Name: DEYE 10kW Hybrid Inverter SUN-10K-SG02 LP1-EU-AM3 | Single Phase
Brand: Deye
SKU: SUN-10K-SG02 LP1-EU-AM3
Price: 230000 KES
Availability: InStock

Last items in stock

KES230,000.00

Tax included

☀️ 10kW Single-Phase Hybrid Solar Inverter

High-capacity energy storage with triple MPPT, generator port, and flexible scaling.

☀️ 10kW AC Output

⚡ 16kW Max PV

🔋 220A Charge/Discharge

🌧️ IP65 Rated

<4ms

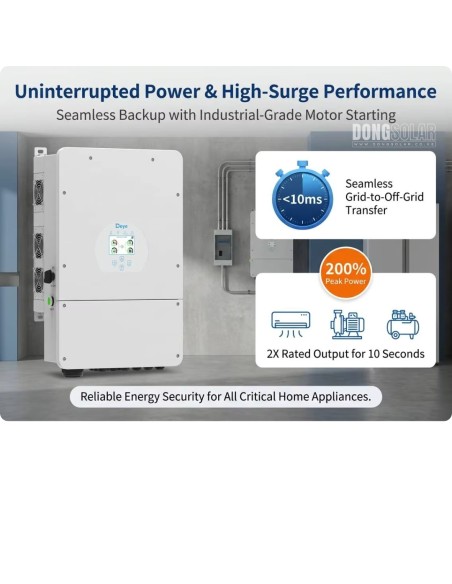

UPS Changeover

500V
Max PV Voltage

150~425V
MPPT Voltage Range

97.6%
Max Efficiency

⚡ High-Capacity 220A Charge & AC Coupling 220A max charge/discharge capacity for 48V low-voltage battery banks. Retrofit existing solar systems via AC coupling.	☀️ Triple MPPT PV Input (15kW) Supports up to 16,000W PV array input. Features 3 MPP trackers for multi-orientational roof layouts with 125V start-up.
📶 Generator Port & Up to ×16 Parallel Dedicated generator input with auto-start management. Parallel up to 16 units for expanded commercial or residential power.	🌧️ IP65 Enclosure & Smart Touchscreen Rugged IP65 weatherproof housing. Intuitive colour touch LCD screen with Wi-Fi, CAN, and RS485 communication options.

📦 In the Box: SUN-10K-SG02LP1-EU-AM3 Inverter ▸ Mounting Brackets ▸ User Manual & Sensors | 48V Low Voltage | 5/10yr Warranty

Variants

Vestwoods 6kW Hybrid Inverter (VW6KSLES) | 6000W Single Phase | 9000W Solar Input

GoodWe STS Series Static Transfer Switch | STS200-80-10

GoodWe 20kW Three-Phase Hybrid Inverter GW20K-ET-L-G10 | 48V Low Voltage Battery Compatible

GoodWe 15kW Three-Phase Hybrid Inverter GW15K-ET-L-G10 | 48V Low Voltage Battery Compatible

GoodWe 50kW Three-Phase Hybrid Inverter GW50K-ET-10 | High Voltage Commercial Solar

GoodWe 10kW ES Uniq Hybrid Inverter LV GW10K-ES-C10 | Single Phase

+10

GoodWe 12kW ES Uniq Hybrid Inverter LV GW12K-ES-C10 | Single Phase

GoodWe 6kW Hybrid Solar Inverter (GW6000-ES-C10) | 6000W Single Phase | 48V Battery Compatible

GoodWe 5kW Hybrid Solar Inverter (GW5000-ES-C10) | 5000W Single Phase | 48V Battery Compatible

GoodWe 8kW ES Uniq Hybrid Inverter LV GW8000-ES-C10 | Single Phase

Bluetti AC300 3000W Modular Inverter | 6000W Surge | Expandable LiFePO4 Home Backup

Bluetti B300K 2764Wh Expansion Battery | LiFePO4 Battery Module for AC200L, AC300, AC500

GoodWe 6kW Solar Inverter (GW6k-EO-G20) | Single Phase, 48V, Dual MPPT & IP66

DEYE 5kW Hybrid Inverter SUN-5KSG04LP1-EU-SM2 | Single Phase

DEYE 8kW Hybrid Inverter SUN-8K-SGO5LP1-EU-SM2 | Single Phase

Description

DEYE 10kW Hybrid Inverter SUN-10K-SG02 LP1-EU-AM3 | Single Phase

Deye SUN-10K-SG02LP1-EU-AM3 10kW Single-Phase Hybrid Inverter

Maximize your home or business energy capacity with the Deye SUN-10K-SG02LP1-EU-AM3. This robust 10kW single-phase low-voltage hybrid inverter pairs high-power output with a heavy-duty charge current of up to 220A and discharge current of up to 190A. Featuring an advanced triple-MPPT design for complex roof layouts, smart generator integration, and parallel scalability up to 16 units, it delivers seamless grid-tied and off-grid performance.

Why Choose the Deye 10kW Hybrid Inverter?

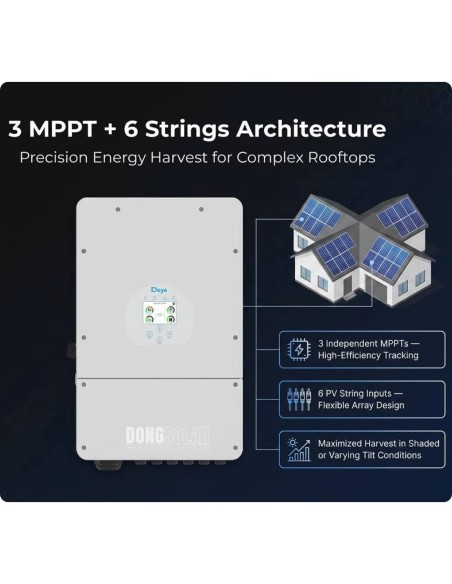

⚡ Triple MPPT & High Solar Input

Equipped with 3 independent MPP trackers supporting up to 20,000W of max PV access power to optimize complex array orientations.

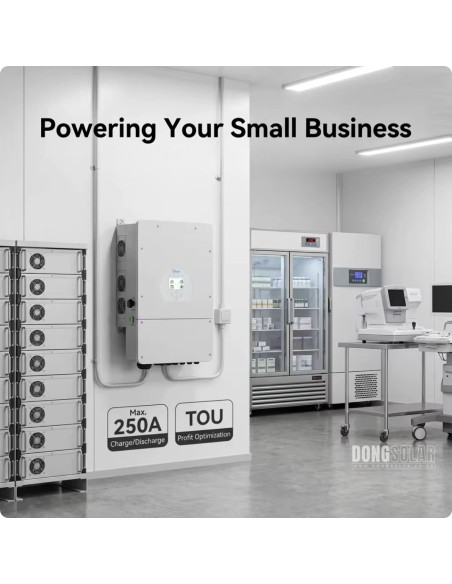

🔋 High-Current Battery Performance

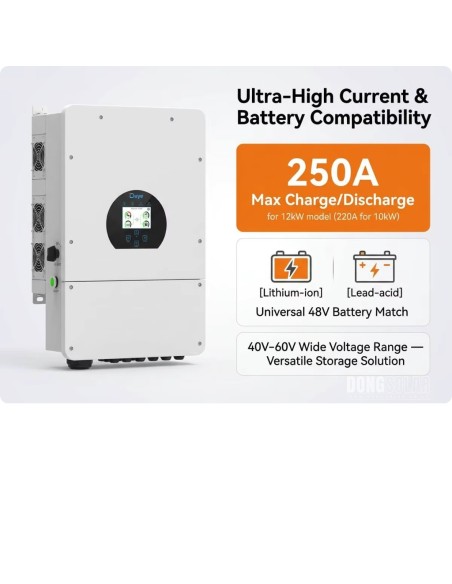

Designed for 40–60V low-voltage lead-acid or lithium-ion batteries, featuring BMS self-adaptation, a 220A max charging current, and a 190A max discharging current.

🔄 Scalable Parallel Operation

Supports parallel connection of up to 16 units for large-scale residential or commercial on-grid and off-grid applications.

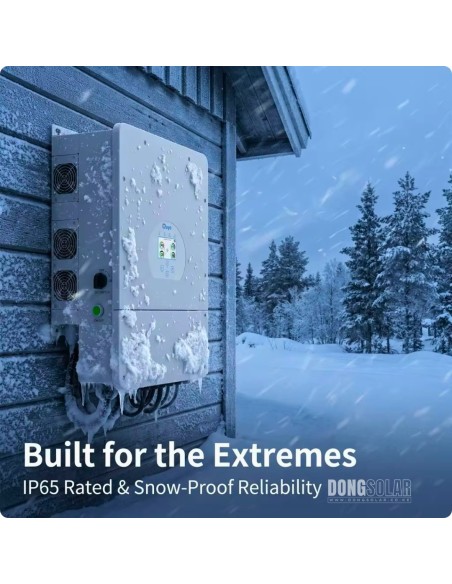

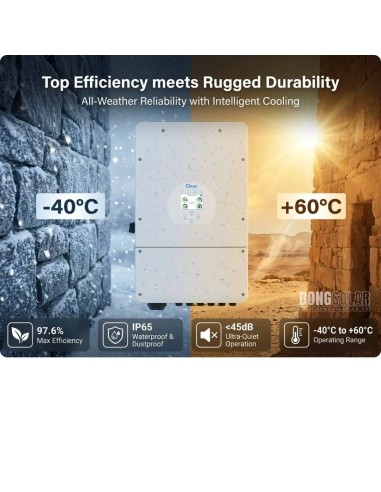

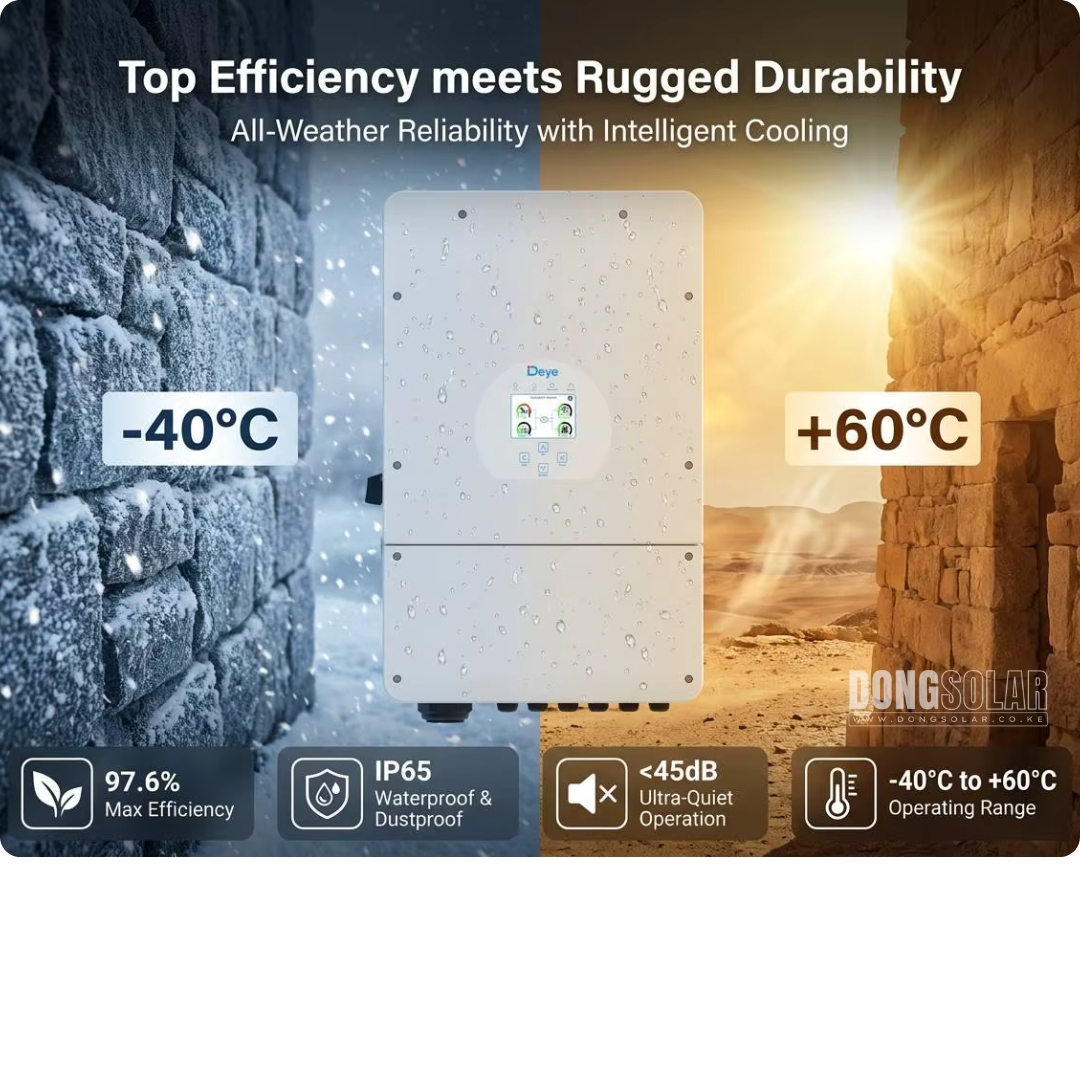

🛡️ Rugged IP65 & Intelligent Cooling

Housed in an IP65 weatherproof enclosure with intelligent air cooling for secure indoor or outdoor installation.

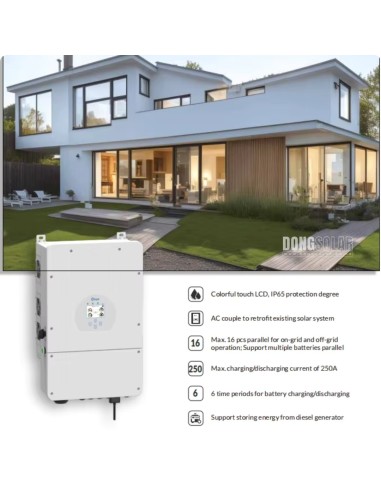

Advanced Features & Functions

Triple MPPT Versatility: Features 3 trackers (2+2+2 strings) to handle multi-directional array designs efficiently.
Intelligent Time-of-Use Control: Programmable with 6 distinct time periods for battery charging and discharging cycles.
AC Coupling Integration: Easily retrofits existing grid-tied photovoltaic systems into advanced storage setups.
Diesel Generator Support: Includes dedicated generator compatibility for storing excess energy or powering critical loads.

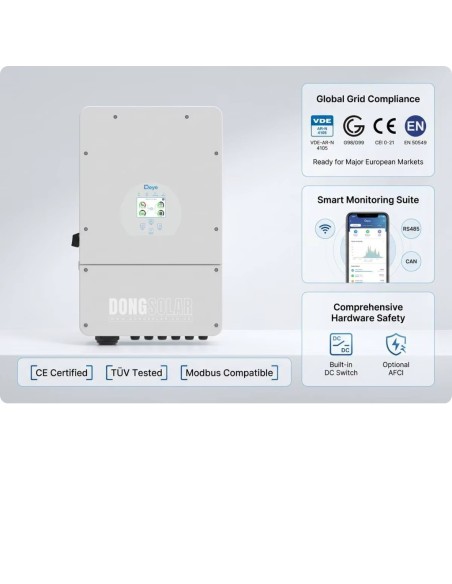

Interactive Display & Comms: Built with a colorful touch LCD screen alongside RS485/RS232/CAN and optional monitoring interfaces.

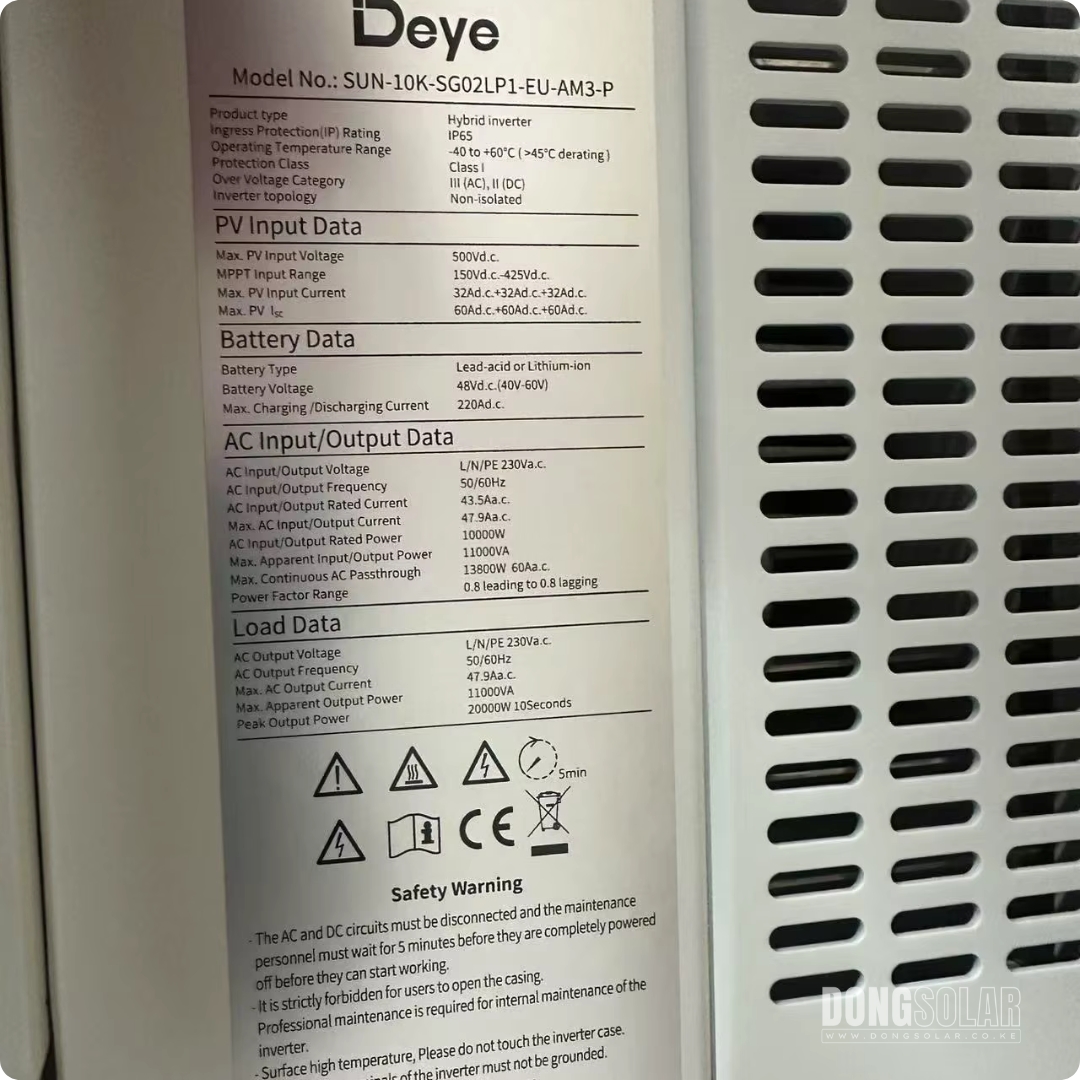

Technical Specifications

Specification	Deye SUN-10K-SG02LP1-EU-AM3 Details
Rated AC Output Power	10,000W (Max Apparent Power: 11,000VA)
Battery Voltage Range	40V – 60V (Lead-acid or Lithium-ion)
Max. Charge / Discharge Current	220A / 190A
Max. PV Input Power	16,000W (Max Access Power: 20,000W)
MPPT Trackers / Range	3 Trackers (2+2+2 Strings) \| Range: 150V – 425V
Max. & Euro Efficiency	97.6% Max / 96.5% Euro Efficiency
Enclosure & Cooling	IP65 Rated, Intelligent Air Cooling, Noise <45 dB
Dimensions & Weight	420 × 670 × 233 mm \| 35.6 kg

DEYE 10kW Hybrid Inverter SUN-10K-SG02 LP1-EU-AM3 | Single Phase

Product Details

Battery Type: Can do Both Li-Ion and Lead-acid
AC Outlets: 10000watts
Solar Charge Input: 16000watts
Weight: 36Kgs
Dimensions: 420mm × 670mm × 233mm (Excluding Connectors and Brackets)
Warranty: 5 Years
UPS Switching time: Less than 4ms
General: Please see Datasheet Attached Below

Brand

Reference SUN-10K-SG02 LP1-EU-AM3

In stock 1 Item

MPN SUN-10K-SG02 LP1-EU-AM3

Attachments

Datasheet DeyeSUN-10K-SG02 LP1-EU-AM3

Download (281.15KB)
