On sale!

GoodWe 6kW Solar Inverter (GW6k-EO-G20) | Single Phase, 48V, Dual MPPT & IP66

GoodWe 6kW Solar Inverter (GW6k-EO-G20) | Single Phase, 48V, Dual MPPT & IP66

Name: GoodWe 6kW Solar Inverter (GW6k-EO-G20) | Single Phase, 48V, Dual MPPT & IP66
Brand: GOODWE
SKU: GW6K-EO-G20
Price: 85000 KES
Availability: InStock

Last items in stock

KES85,000.00

Tax included

☀️ GOODWe Tier-1. 6kW. 12kW Solar.

6000W off-grid pure sine, IP66 rated, 130A battery charge/discharge & 10-unit parallel.

⚡ 6000W Output

🌧️ IP66 Rated

☀️ 12kW Solar

📱 4.3" Touchscreen

6000W
AC Output

12kW
Solar Input

130A
Max Charge/Discharge

10 Units
Max Parallel

☀️ 200% Oversizing (12kW PV) Accepts up to 12kW of solar across dual MPPTs (21A input per string) with a wide 50–480V MPPT range and 98.6% max efficiency.	🌧️ Weatherproof IP66 & 4.3" Touchscreen Built for harsh environments (-35°C to 60°C) with aviation connectors, an intuitive touchscreen, and built-in GFCI & Surge protection.
🔌 Parallel Up to 10 Units or 3-Phase Parallel up to 10 units for large off-grid systems or connect 3 single-phase units to form a complete 3-phase network.	🔋 Generator-Ready & 40–60V Battery 130A charge/discharge current for 40–60V batteries. Multi-scenario support for PV, grid, battery, and direct generator input.

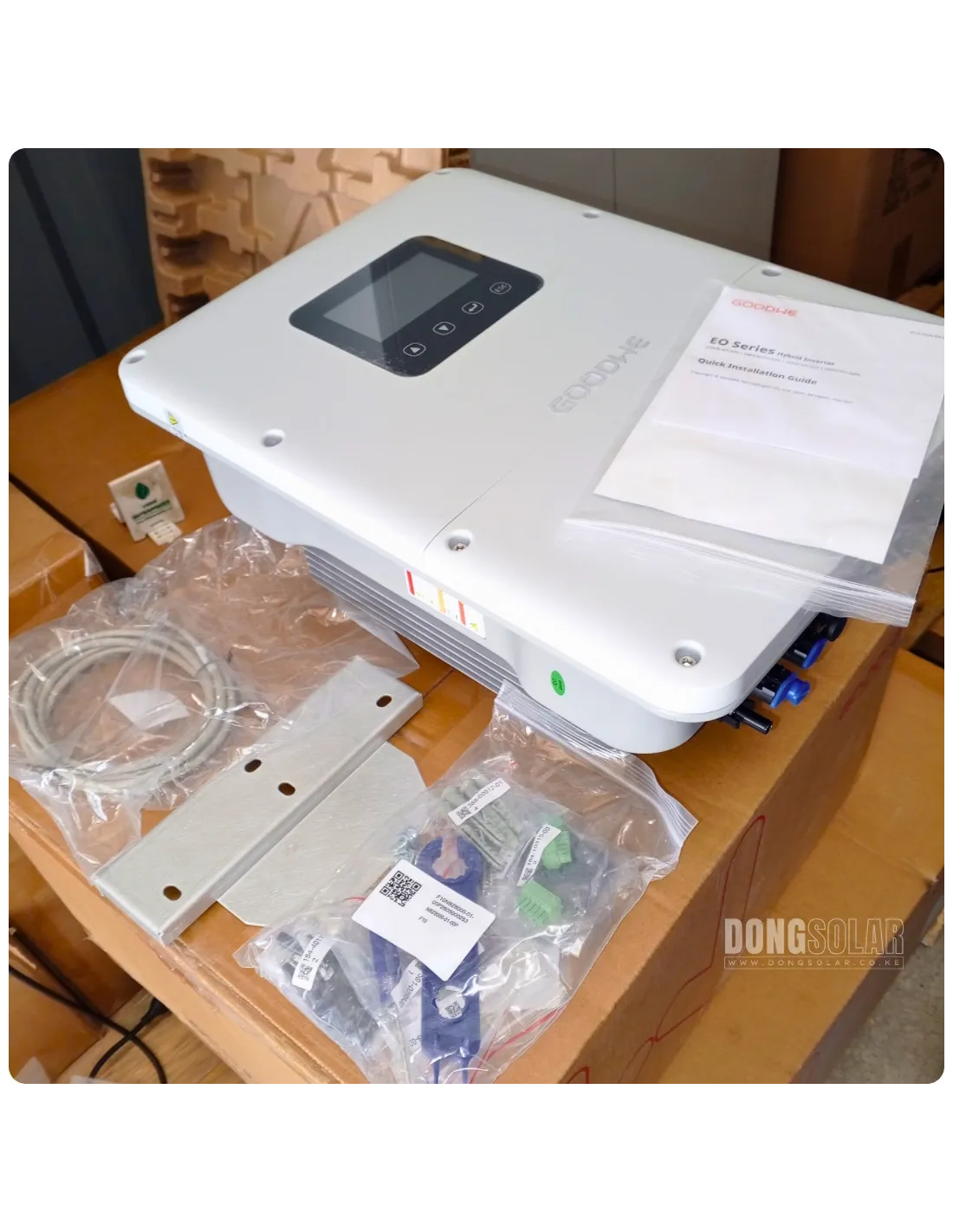

📦 In the Box: GW6K-EO-G20 Inverter ▸ Mounting Bracket ▸ User Manual & Connectors | Professional installation recommended

Variants

Vestwoods 6kW Hybrid Inverter (VW6KSLES) | 6000W Single Phase | 9000W Solar Input

GoodWe STS Series Static Transfer Switch | STS200-80-10

GoodWe 20kW Three-Phase Hybrid Inverter GW20K-ET-L-G10 | 48V Low Voltage Battery Compatible

GoodWe 15kW Three-Phase Hybrid Inverter GW15K-ET-L-G10 | 48V Low Voltage Battery Compatible

GoodWe 50kW Three-Phase Hybrid Inverter GW50K-ET-10 | High Voltage Commercial Solar

GoodWe 10kW ES Uniq Hybrid Inverter LV GW10K-ES-C10 | Single Phase

+10

GoodWe 12kW ES Uniq Hybrid Inverter LV GW12K-ES-C10 | Single Phase

GoodWe 6kW Hybrid Solar Inverter (GW6000-ES-C10) | 6000W Single Phase | 48V Battery Compatible

GoodWe 5kW Hybrid Solar Inverter (GW5000-ES-C10) | 5000W Single Phase | 48V Battery Compatible

GoodWe 8kW ES Uniq Hybrid Inverter LV GW8000-ES-C10 | Single Phase

Bluetti AC300 3000W Modular Inverter | 6000W Surge | Expandable LiFePO4 Home Backup

Bluetti B300K 2764Wh Expansion Battery | LiFePO4 Battery Module for AC200L, AC300, AC500

DEYE 5kW Hybrid Inverter SUN-5KSG04LP1-EU-SM2 | Single Phase

DEYE 10kW Hybrid Inverter SUN-10K-SG02 LP1-EU-AM3 | Single Phase

DEYE 8kW Hybrid Inverter SUN-8K-SGO5LP1-EU-SM2 | Single Phase

Description

GoodWe 6kW Solar Inverter (GW6k-EO-G20) | Single Phase, 48V, Dual MPPT & IP66

GoodWe GW6K-EO-G20 Single-Phase Off-Grid Inverter (6kW | IP66)

Power your home or business with the next-generation GoodWe GW6K-EO-G20 Off-Grid Inverter. Upgraded from the previous generation with a <4ms transfer time, enhanced IP66 weatherproofing, an intuitive 4.3" Touchscreen, and massive 200% PV oversizing capacity (12kW max solar input), this G2 series inverter delivers uncompromised energy independence.

G2 Series Upgrades & Key Features

⏱️ Upgraded <4ms Switching Time

Dramatically improved from standard UPS speeds to sub-4-millisecond switching, guaranteeing seamless backup power for sensitive IT, PC, and medical gear.

☀️ 200% PV Oversizing & 21A Strings

Supports up to 12.0 kW max PV input power across 2 MPPTs with 21A per string handling capacity to easily connect modern high-current solar modules.

🛡️ Enhanced IP66 Protection & 4.3" Touchscreen

Upgraded to a weather-sealed IP66 rating for harsh environments (-35°C to 60°C) and upgraded with an integrated 4.3" touchscreen for simple setup.

🔋 130A High-Speed Battery Charging

High-power 130A continuous charge and discharge current with 6.0 kW max charge capacity ensures quick replenishment of 48V battery banks.

Summary of G2 Generation Upgrades

Ultra-Fast Switching: Upgraded from standard switching down to < 4ms seamless transfer time.
Enhanced Enclosure Rating: Upgraded from IP65 to IP66 water & dust resistance for harsh outdoor environments.
Improved Interactive Touch Display: Integrated 4.3" color touchscreen for quick local operation and parameter configuration.
Boosted Solar Capacity: Allows 200% PV oversizing (up to 12kW) with 21A input per string.
Comprehensive Electrical Safety: Includes built-in GFCI, Type III DC surge protection, Type II AC surge protection, and reverse polarity protection.
Dual Local & Remote Control: Built-in Bluetooth and Wi-Fi modules support direct local app setup and cloud management.

Technical Specifications

Feature Parameter	Specification Detail
Model	GoodWe GW6K-EO-G20 (EO G2 Series)
Nominal AC Output Power	6.0 kW (Max Power: 6.6 kW / Peak Surge: 12 kVA for 10s)
Max. PV Input Power	12.0 kW (200% Oversizing)
MPPT Trackers / Current	2 MPPTs / 21A per string (Short circuit current: 26A)
MPPT Voltage Range	50V – 480V (Max Input: 530V)
Battery Voltage & Type	48V Nominal (40–60V Range, Lithium-ion / Lead-acid)
Max. Charge / Discharge Current	130A / 130A (Max Charge Power: 6.0 kW)
UPS Switchover Time	< 4 milliseconds
Max. Conversion Efficiency	98.6% (European Efficiency: 96.8%)
Protection Rating & Temp	IP66 \| Operating Range: -35°C to 60°C
Dimensions & Weight	337 × 456 × 201 mm \| < 13 kg

GoodWe 6kW Solar Inverter (GW6k-EO-G20) | Single Phase, 48V, Dual MPPT & IP66

Product Details

Battery Type: Can use Lithium or Lead Acid
AC Outlets: 6000watts
Solar Charge Input: 12000watts
Max Input: 6000watts
Weight: 13Kgs
Dimensions: 337mm × 456mm × 201mm
Warranty: 10 Years
General: Please see Datasheet Attached Below
Wall Mounted
PV Array MPPT Voltage Range (Typ.): 50v - 480v
Battery Nominal Voltage: 48V

Brand

Reference GW6K-EO-G20

In stock 1 Item

MPN GW6K-EO-G20

Attachments

GOODWe GW6K-EO-G20_DataSheet

Download (603.8KB)
