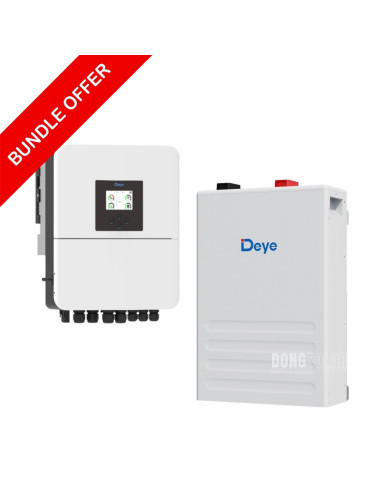

DEYE 5kW Solar Energy Storage Bundle | 5kW Inverter & 5.12kWh LiFePO4 Battery

Deye 5kW Hybrid Solar System Bundle – SUN-5K-SG04LP1-EU-SM2 + SE-F5 5.12kWh Battery

Name: Deye 5kW Hybrid Solar System Bundle – SUN-5K-SG04LP1-EU-SM2 + SE-F5 5.12kWh Battery
Brand: Deye
SKU: SUN-5K-SG04LP1-EU-SM2+SE-F5
Price: 220000 KES
Availability: InStock

Last items in stock

KES220,000.00

Instead of KES230,000.00

⚡ 5kW Hybrid Inverter | 🔋 5.12kWh LFP | ☀️ Dual MPPT | 🔄 120A Battery | 📱 Smart Monitoring

Complete Hybrid ESS Solution — Uninterrupted power, high efficiency, and scalable energy independence.

⚡ 5kW Hybrid Inverter

🔋 5.12kWh LFP Battery

🏠 IP65 Protection

📱 App Monitoring

5.0 kW
Rated Inverter Output

5.12kWh
Battery Capacity

10kW
Supports up to 10,000W max PV access power

6,000+
Battery Cycles

⚡ Seamless Hybrid Performance Combines a powerful Deye 5kW inverter with rapid UPS switchover times to protect your home or business from grid outages.	🔋 Safe & Expandable LiFePO4 Features advanced BMS active fuse safety, 80% recommended DoD, and easy parallel scalability as your energy needs grow.
⏱️ Smart Time-of-Use Control Program up to 6 different charging and discharging periods to optimize savings during peak and off-peak utility tariffs.	📱 Real-Time App Monitoring Track your solar generation, battery status, and home power consumption remotely using the dedicated Deye mobile app.

📦 In the Bundle: 1x Deye 5kW Hybrid Inverter SUN-5K-SG04LP1-EU-SM2 + 1x Deye 5.12kWh LiFePO4 Battery Module SE-F5 ▸ Mounting Brackets & Communication Cables

This pack contains

DEYE 5kW Hybrid Inverter SUN-5KSG04LP1-EU-SM2 | Single Phase

Deye SUN-5K-SG04LP1-EU-SM2 5kW 48V Single Phase Hybrid Solar Inverter

KES120,000.00

Deye SE-F5 5.12kWh 51.2V 100Ah LiFePO4 Battery | Dong Solar

KES110,000.00

Description

DEYE 5kW Solar Energy Storage Bundle | 5kW Inverter & 5.12kWh LiFePO4 Battery

Deye 5kW Hybrid Inverter & 5.12kWh LiFePO4 Battery Bundle

Achieve ultimate residential energy independence with an optimized, factory-matched energy storage bundle designed for absolute reliability and seamless performance.

Key Bundle Highlights

Native Communication & Integration: Built to interface seamlessly using CAN and RS485 protocols, allowing the inverter and battery management system (BMS) to optimize charging parameters dynamically.
Rapid Uninterrupted Power Supply (UPS): Features an ultra-fast switching time of less than 4ms, protecting sensitive appliances, computers, and entertainment systems from unexpected grid failures.

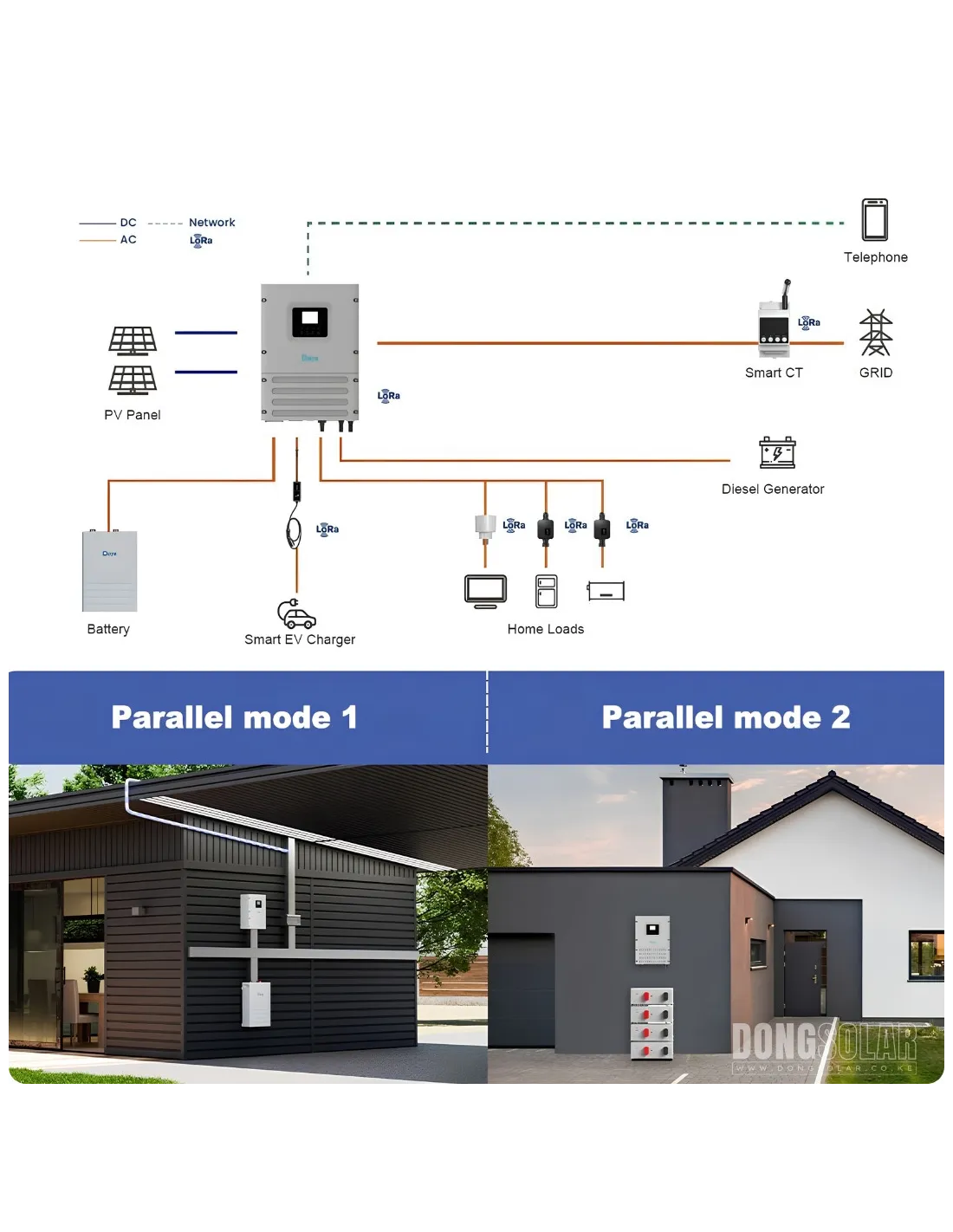

Flexible Scalability: Scale your system layout effortlessly by connecting up to 16 inverters in parallel for on-grid or off-grid setups, and expand battery storage up to 32 units standard (or 64 units utilizing a CAN-Bridge).
Smart Time-of-Use Scheduling: Program up to 6 distinct time periods for battery charging and discharging to optimize self-consumption and exploit cheaper off-peak utility tariffs.

1. Deye 5kW Single-Phase Hybrid Inverter

Model: SUN-5K-SG04LP1-EU-SM2

PV Capacity: Supports up to 10,000W max PV access power with dual MPPT trackers (18A + 18A operating current) to handle complex array configurations.
High Efficiency: Delivers a maximum efficiency of 97.6% (96.5% Euro efficiency) with a robust 120A max charge and discharge current.
Generator Compatibility: Features a dedicated auxiliary port capable of storing energy sourced from backup diesel generators.
Rugged Build: Housed in an IP65-rated enclosure utilizing natural cooling (<45dB noise level) and a colorful touch-screen LCD interface.

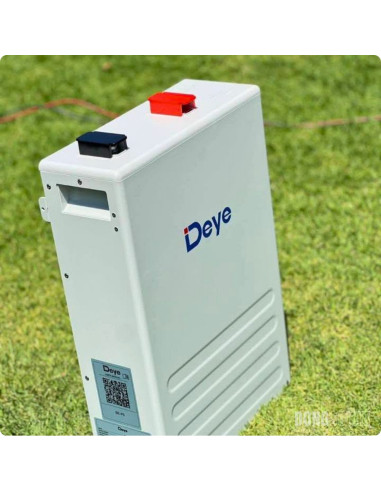

2. Deye SE-F5 5.12kWh LiFePO4 Battery

Model: SE-F5 (51.2V 100Ah)

Superior LFP Performance: Engineered with Lithium Iron Phosphate chemistry, offering 5.12 kWh nominal energy and a long cycle life of ≥ 6,000 cycles at 25°C.
High Power Delivery: Supports a 100A recommended / 120A continuous charge current and a 120A continuous / 150A peak (10s) discharge current.
Advanced Active Safety: Features an advanced BMS with active fuse protection, cell balancing, and robust thermal performance ranging from -20°C to 55°C for discharge.
Smart Monitoring: Supports auto-networking, local Bluetooth monitoring via the Deye mobile app, and remote ESS tracking integration.

Technical Specifications Summary

System Parameter	Inverter (SUN-5KSG04LP1-EU-SM2)	Battery (Deye SE-F5)
Rated / Nominal Power	5,000W AC Output (Max 5,500VA)	5.12 kWh Nominal Energy
Voltage Range	40V – 60V Battery Voltage Range	51.2V Nominal (44.8V – 57.6V Operating)
Max Current	120A Max Charge / Discharge	120A Continuous Discharge (150A Peak)
Efficiency / Cycle Life	97.6% Max Efficiency	≥ 6,000 Cycles (≥ 80% DoD profile)
Ingress Protection	IP65 Enclosure	IP21 Enclosure
Dimensions & Weight	376 × 470 × 241.5 mm \| 19 kg	370 × 548 × 140 mm \| 41 kg

Ideal Applications

Residential Homes

Perfect for running everyday loads including refrigerators, lighting, entertainment centers, Wi-Fi routers, and water booster pumps.

Home Offices & Small Businesses

Guarantees uptime for crucial computing equipment, point-of-sale systems, and communication tools during local grid outages.

DEYE 5kW Solar Energy Storage Bundle | 5kW Inverter & 5.12kWh LiFePO4 Battery

Product Details

Brand

Reference SUN-5K-SG04LP1-EU-SM2+SE-F5

In stock 1 Item

MPN SUN-5K-SG04LP1-EU-SM2+SE-F5

Attachments

Datasheet SUN-5KSG04LP1-EU-SM2

Download (194.17KB)

Deye SE-F5 Datasheet

Download (6.53MB)

Reviews (0)

No reviews

Comments (0)

No customer reviews for the moment.
