Deye SE-F5 5.12kWh 51.2V 100Ah LiFePO4 Battery | Dong Solar

Deye SE-F5 5.12kWh 51.2V 100Ah LiFePO4 Battery | Dong Solar

Name: Deye SE-F5 5.12kWh 51.2V 100Ah LiFePO4 Battery | Dong Solar
Brand: Deye
SKU: SE-F5
Price: 110000 KES
Availability: InStock

Last items in stock

KES110,000.00

🔋 5.12kWh Deye LiFePO4. Parallel Up to 163.8kWh.

Deye Advanced ESS Solution — 5.12kWh, 51.2V 100Ah, up to 32 modules in parallel.

🔋 5.12kWh LFP

⚡ 6.14kW Output

🔌 80% DoD

🏠 Active Fuse Protection

5.12kWh
Per Module

6.14kW
Max Continuous

80%
Recommended DoD

51.2V
Nominal Voltage

⚡ High Power 6.14kW Draw Supports 1.2C discharge (120A continuous / 150A peak burst) with 80% recommended Depth of Discharge.	🔌 Flexible Parallel Expansion Connect up to 32 units in parallel. Wall, floor, or stack mounting options available.
🔒 Advanced Active Protection Comprehensive BMS safety with active fuse technology and reliable natural cooling.	📱 Bluetooth & App Monitoring Auto-networking battery detection with local Bluetooth monitoring via the Deye App.

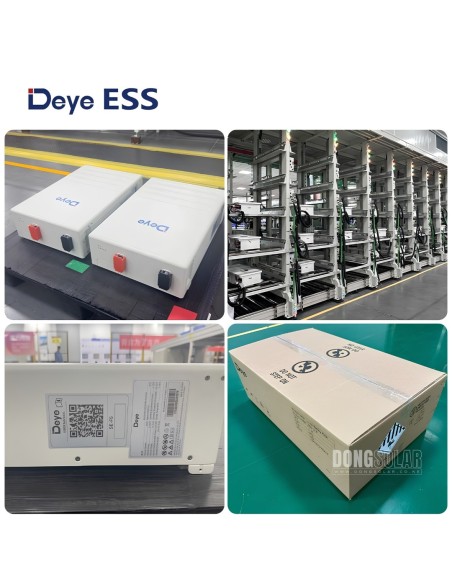

📦 In the Box: Deye SE-F5 Battery Module ▸ Hanging Board/Mounting Kit | Compatible with Deye Hybrid Inverters

Variants

Vestwoods 5.12kWh Smart Lithium Battery (VT48100E) | 51.2V 100Ah LiFePO4 | 6000 Cycles

GoodWe 5kWh Lynx Home A Series Lithium Battery LX A5.0-10 | 51.2V LiFePO4

5kwh

Description

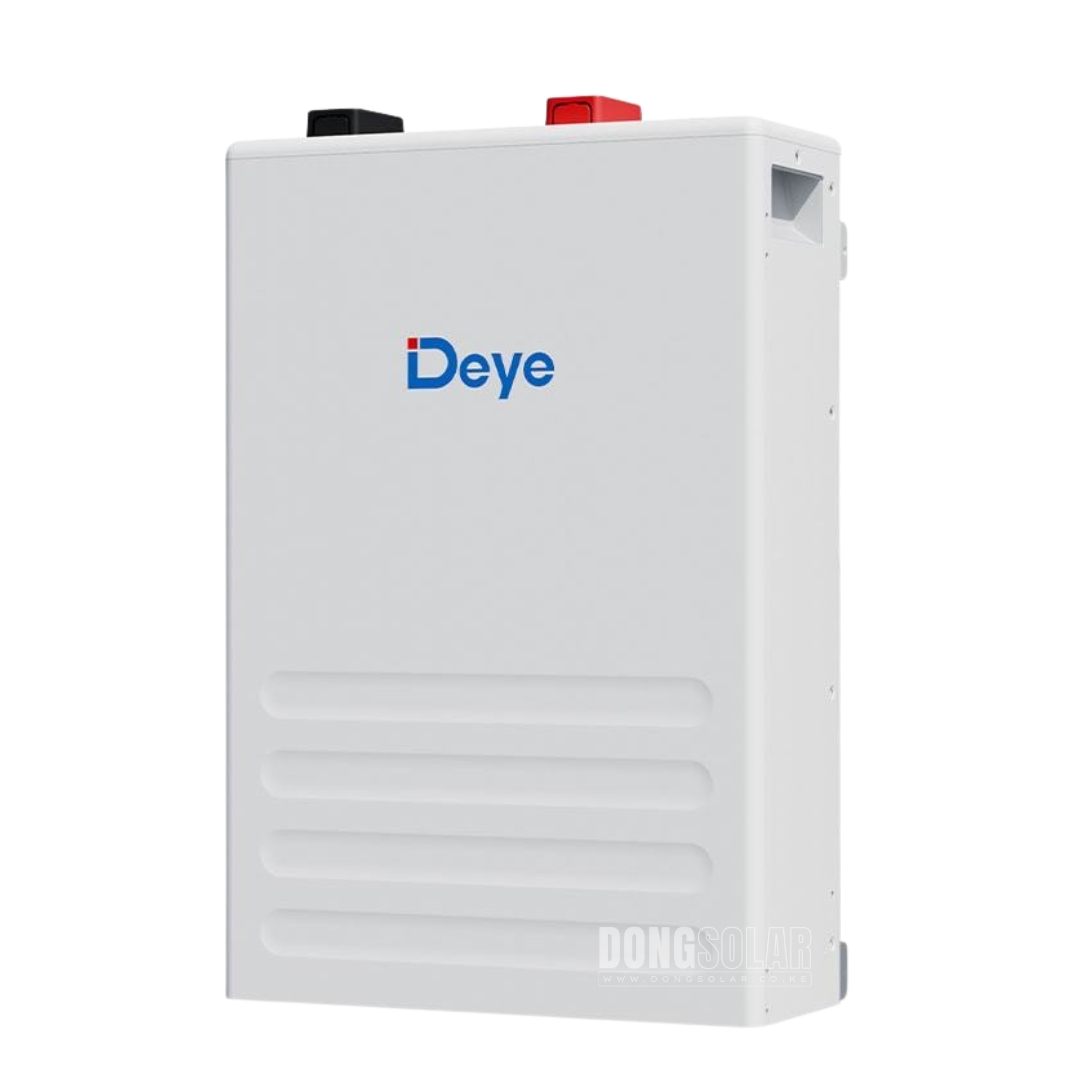

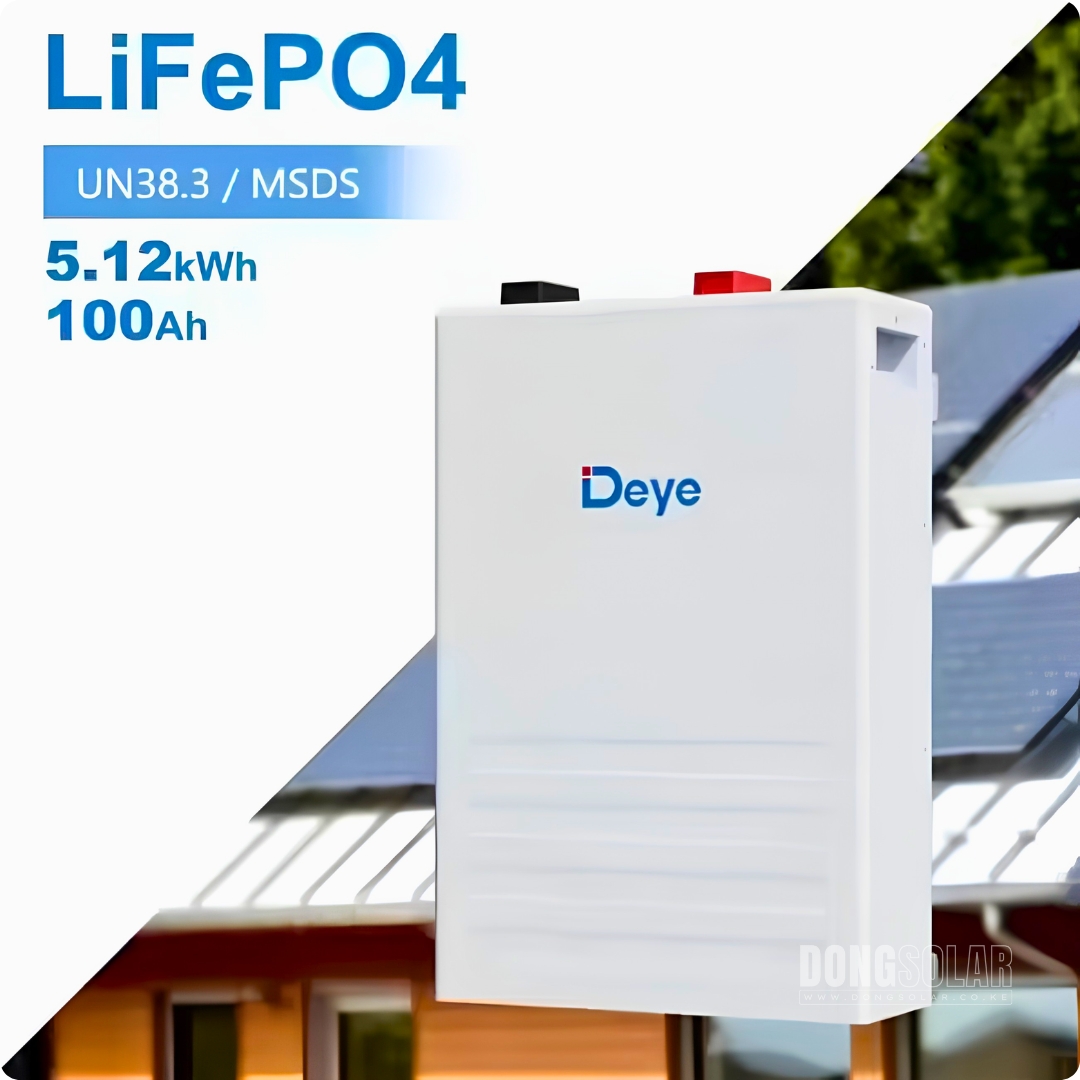

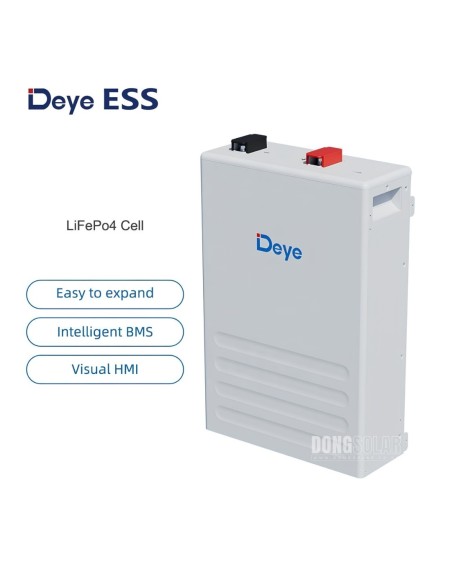

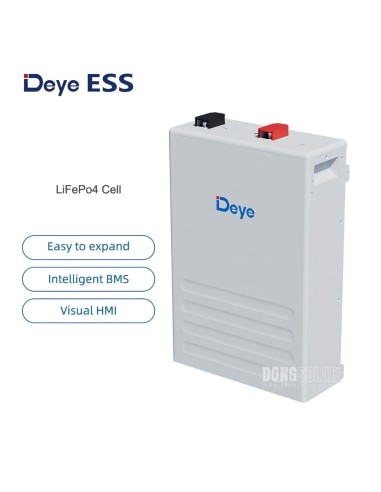

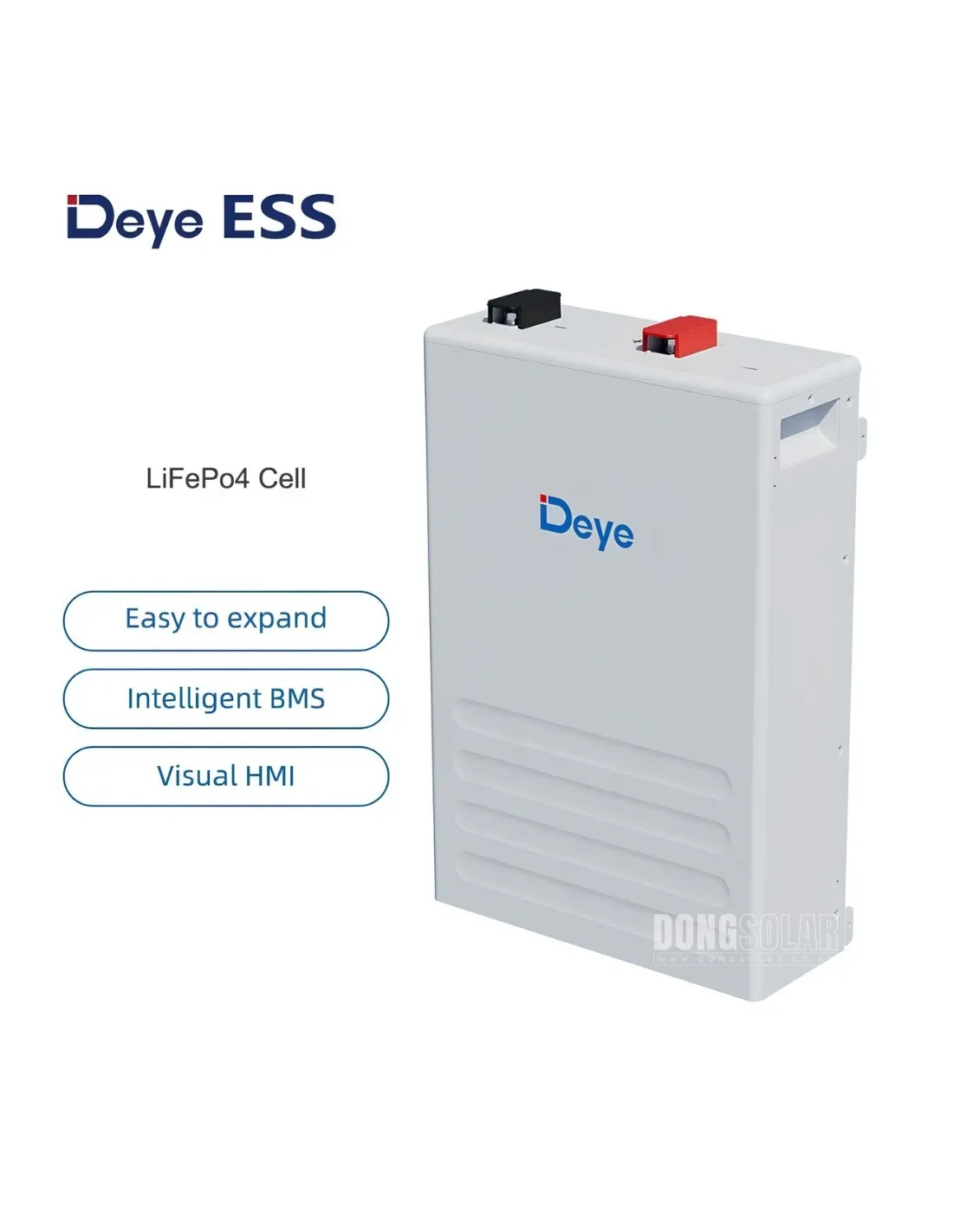

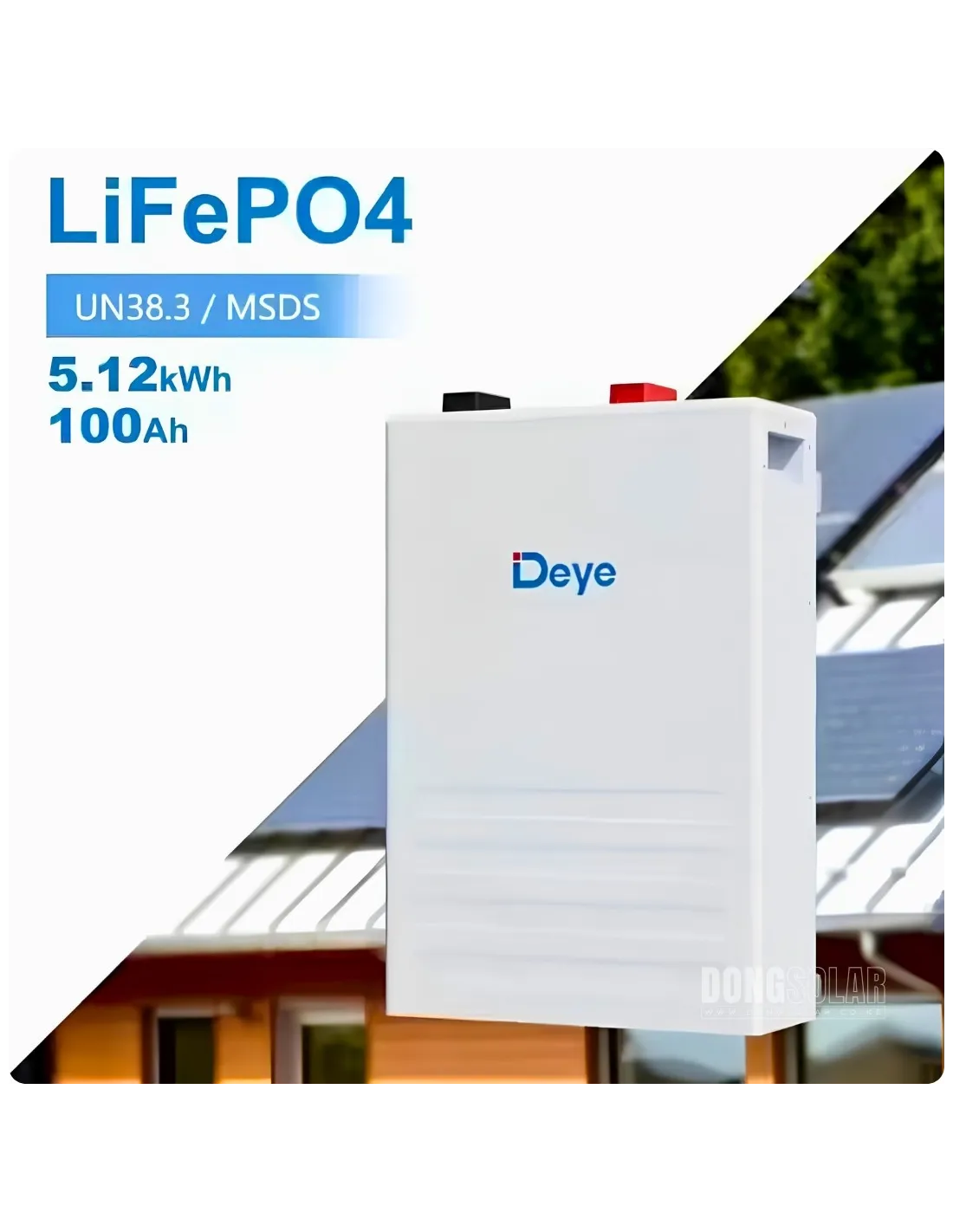

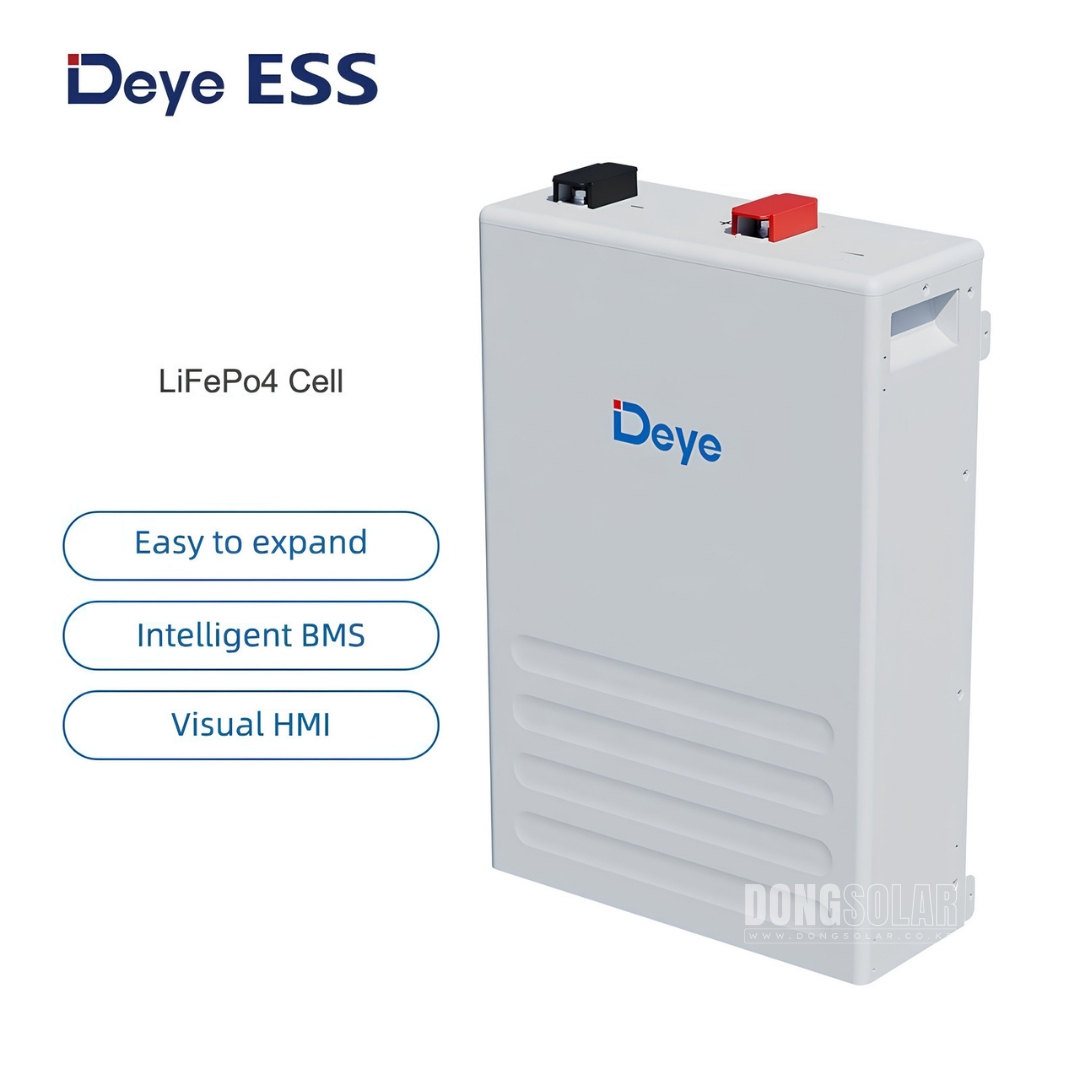

Deye SE-F5 5.12kWh Low-Voltage Lithium Battery ESS Solution

Upgrade your residential energy storage with the Deye SE-F5 ESS solution. This high-performance 5.12kWh low-voltage Lithium Iron Phosphate (LiFePO4) battery integrates advanced safety features, an active-fuse BMS, and integrated pack design for optimized energy density and reduced line loss. Featuring high continuous current ratings, wide operating temperature resilience, and parallel scalability up to 32 units, it ensures absolute reliability and longevity.

Why Choose the Deye SE-F5 Battery?

⚡ Superior Performance & Safety

Equipped with an advanced BMS featuring an active fuse, supporting high continuous charge/discharge currents and robust thermal resistance.

🔋 Scalable Capacity

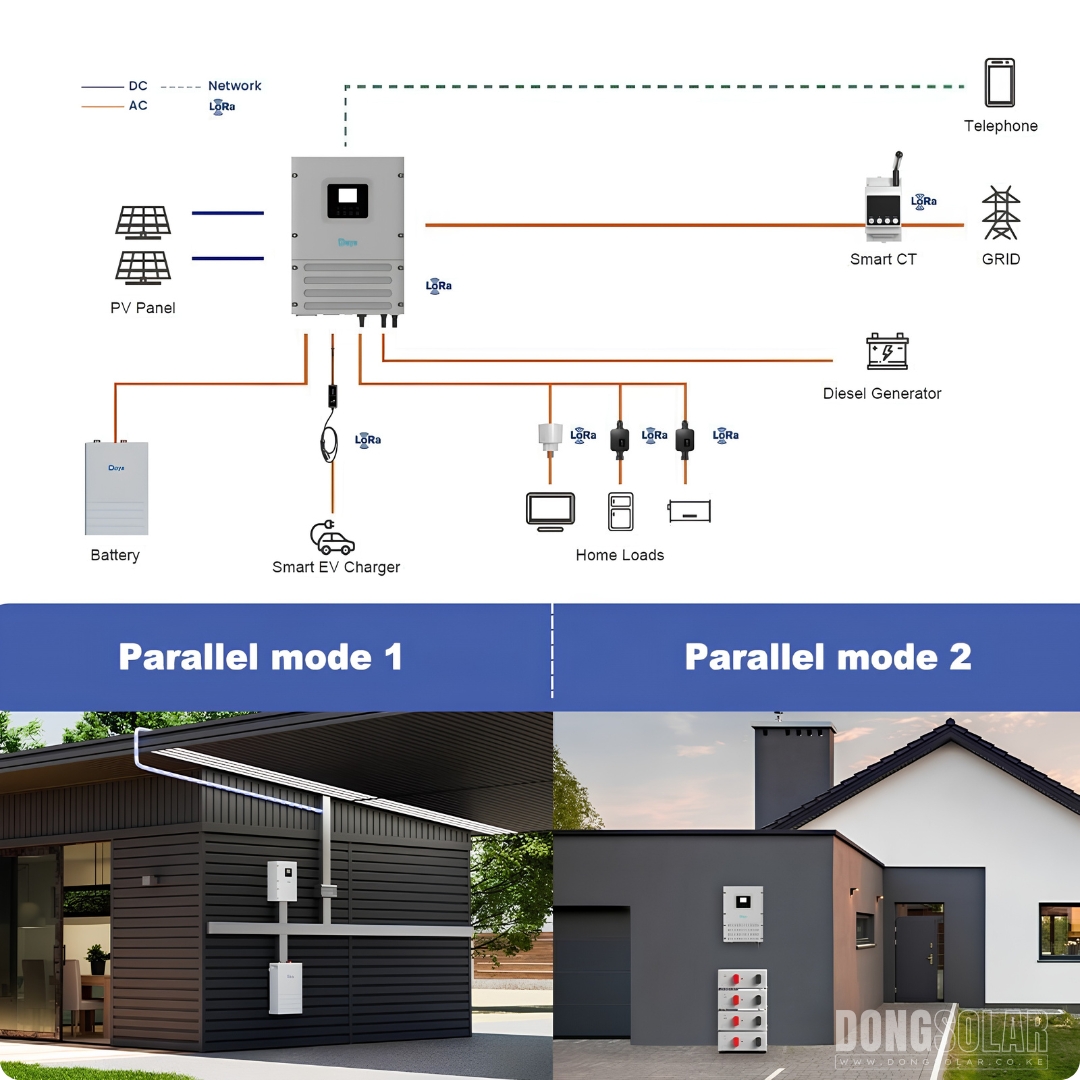

Easily expand your capacity with parallel support for up to 32 units standard, or up to 64 units utilizing a CAN-Bridge.

🔄 Intelligent Maintenance

Offers auto-networking capabilities, local battery monitoring via Bluetooth and app, alongside remote ESS monitoring integration.

🛡️ Flexible Deployment

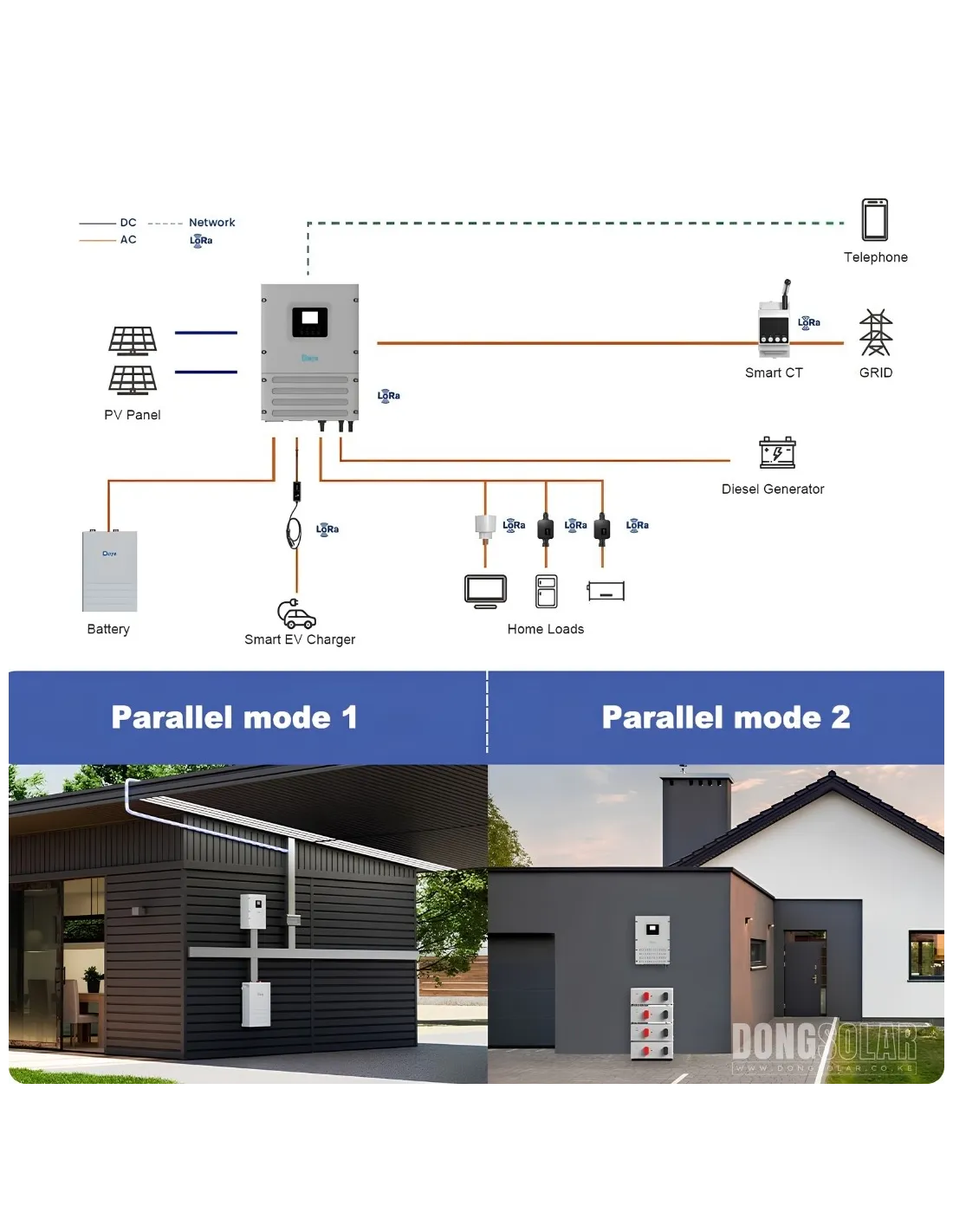

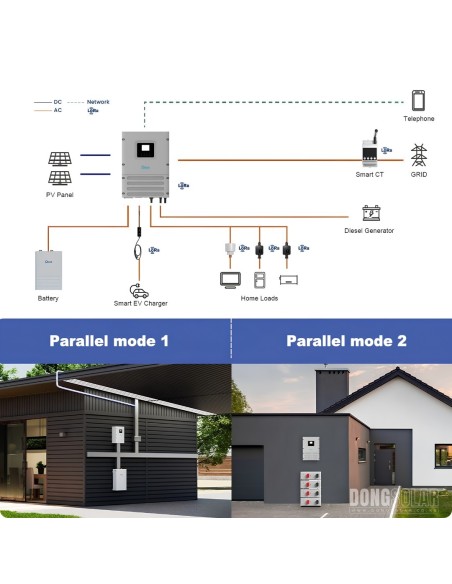

Supports wall-mounted, floor-mounted, and stack-mounted configurations to adapt seamlessly to any indoor installation space.

Advanced Features & Functions

Optimized Energy Pack: Integrated pack structure reduces internal line losses and elevates overall energy density.
Maximum Power Draw: Capable of drawing a maximum continuous charging power of 5,120W (100A at nominal voltage) and a maximum continuous discharging power of 6,144W (120A at nominal voltage), with peak discharge power reaching up to 7,680W for 10 seconds.
Wide Thermal Range: Reliable discharge operation spanning from -20°C to 55°C and charging from 0°C to 55°C with natural cooling.
Extended Cycle Life: Engineered for over 6,000 cycles at 25°C under an 80% depth of discharge (DoD) profile.
Seamless Connectivity: Utilizes CAN2.0 and RS485 communication protocols alongside Bluetooth mobile application pairing.

Technical Specifications

Specification	Deye SE-F5 Details
Battery Chemistry	LiFePO4 (Lithium Iron Phosphate)
Nominal Capacity & Voltage	100 Ah \| 51.2 V (Nominal Energy: 5.12 kWh)
Operating Voltage Range	44.8V – 57.6V
Max. Power Draw (Continuous / Peak)	Charge: 5,120W (100A) \| Discharge: 6,144W (120A) \| Peak Discharge: 7,680W (150A for 10s)
Scalability	Max. 32 units in parallel (Up to 64 units with CAN-Bridge)
Cycle Life & DoD	≥6,000 cycles at 25°C \| 80% Depth of Discharge
Communication & Protection	CAN2.0, RS485, Bluetooth+APP \| IP21 Ingress Protection
Dimensions & Weight	370 × 548 × 140 mm (Without hanging board) \| Approx. 41 kg

Product Details

Battery Capacity: 5.12kWh
Battery Type: LiFePO4 (Lithium Iron Phosphate)
Weight: 41Kgs
Dimensions: 370mm × 548mm × 140mm
General: Please see Datasheet Attached Below
Battery Nominal Voltage: 51.2v 100aH

Brand

Reference SE-F5

In stock 1 Item

MPN SE-F5

Attachments

Deye SE-F5 Datasheet

Download (6.53MB)
