Name: GoodWe 5kWh Lynx Home A Series Lithium Battery G1 LV LX A5.0-10 | 51.2V LiFePO4
Brand: GOODWE
SKU: LX A5.0-10
Price: 110000 KES
Availability: InStock

Last items in stock

KES110,000.00

Tax included

🔋 5kWh GoodWe LFP. Stack Up to 75kWh.

GoodWe Tier-1 residential LFP — 5kWh, 51.2V CTP, up to 15 modules in parallel.

🔋 5kWh LFP

⚡ 51.2V LV

🔌 Up to 75kWh

🏠 GoodWe Tier-1 (10 Year Warranty)

5kWh
Per Module

15
Max Parallel

75kWh
Max System

51.2V
Nominal Voltage

🏠 Made for GoodWe Solar Systems Built for GoodWe inverters — seamless compatibility. Add a module and your system grows.	🔌 Stack Up to 15 Modules — 75kWh Start at 5kWh, stack up to 15 units for 75kWh. Cabinet or stacked mounting.
🔒 CTP Design — Lighter & Denser CTP construction — lighter, denser. Insulation resistance test & safe LFP chemistry built in.	⚡ Auto-Recovery & Remote Diagnosis Auto-reboots after undervoltage events. Remote diagnosis for installer troubleshooting.

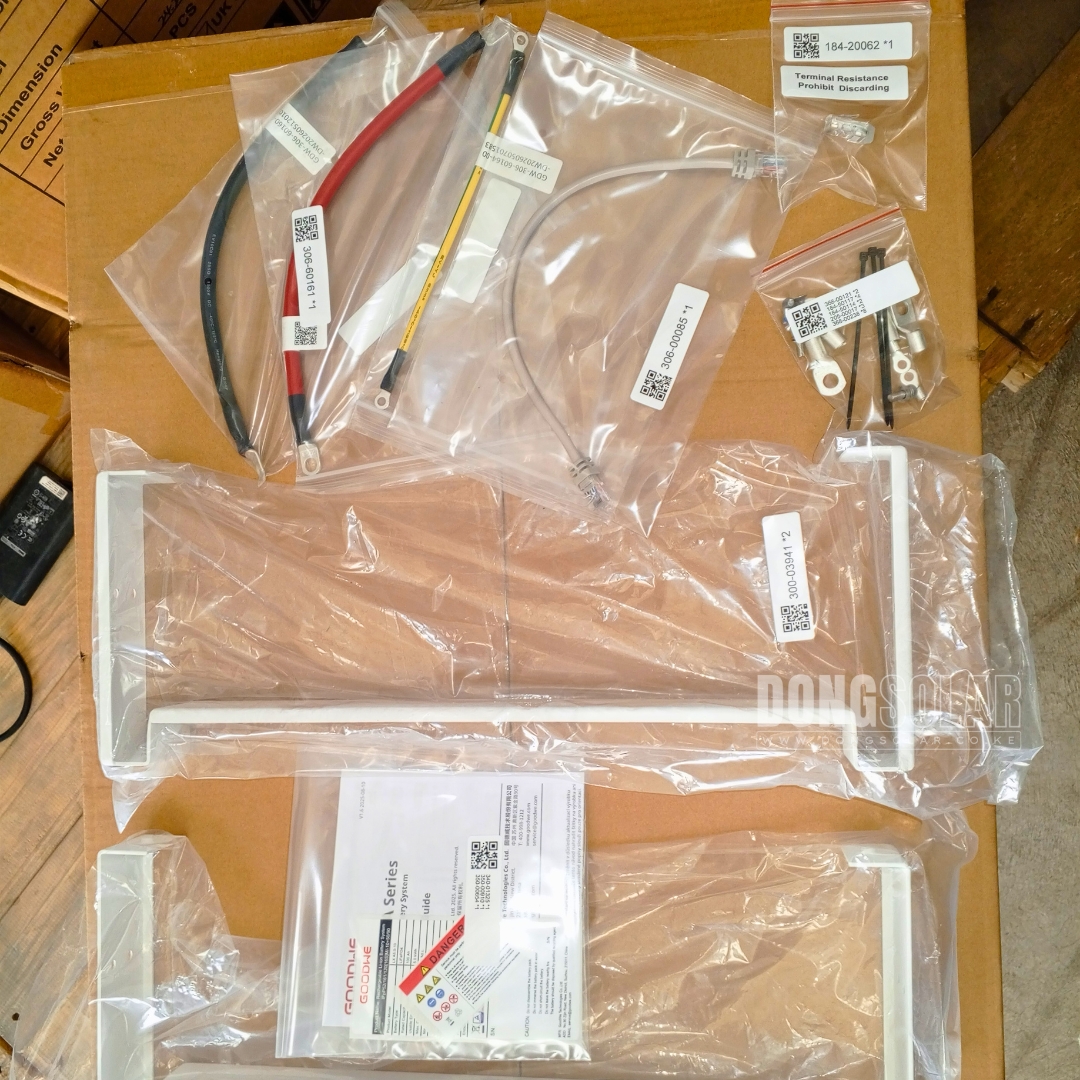

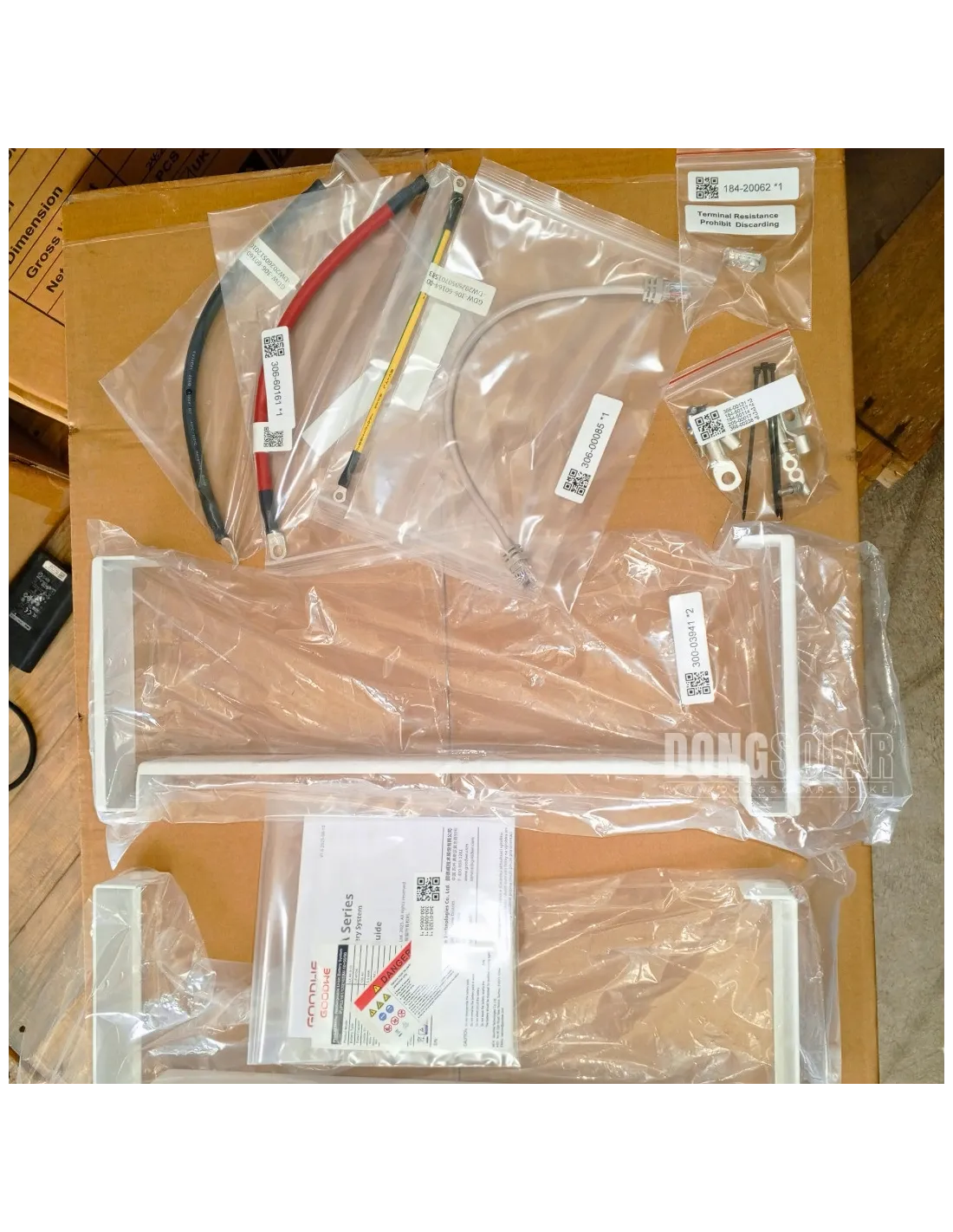

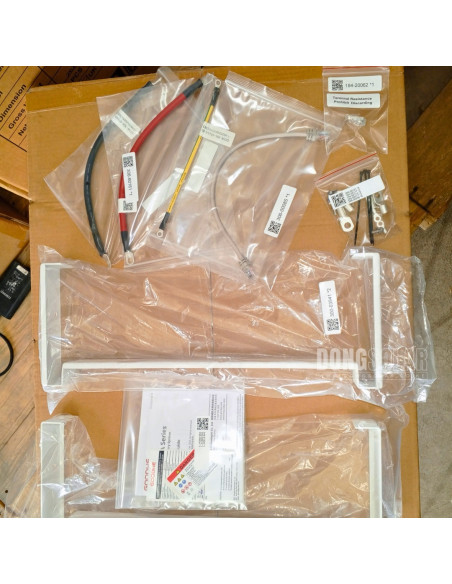

📦 In the Box: LX A5.0-10 Battery Module ▸ Manual | Compatible with GoodWe residential inverters

Variants

Vestwoods 5.12kWh Smart Lithium Battery (VT48100E) | 51.2V 100Ah LiFePO4 | 6000 Cycles

Deye SE-F5 5.12kWh 51.2V 100Ah LiFePO4 Battery | Dong Solar

5kwh

Description

GoodWe 5kWh Lynx Home A Series Lithium Battery G1 LV LX A5.0-10 | 51.2V LiFePO4

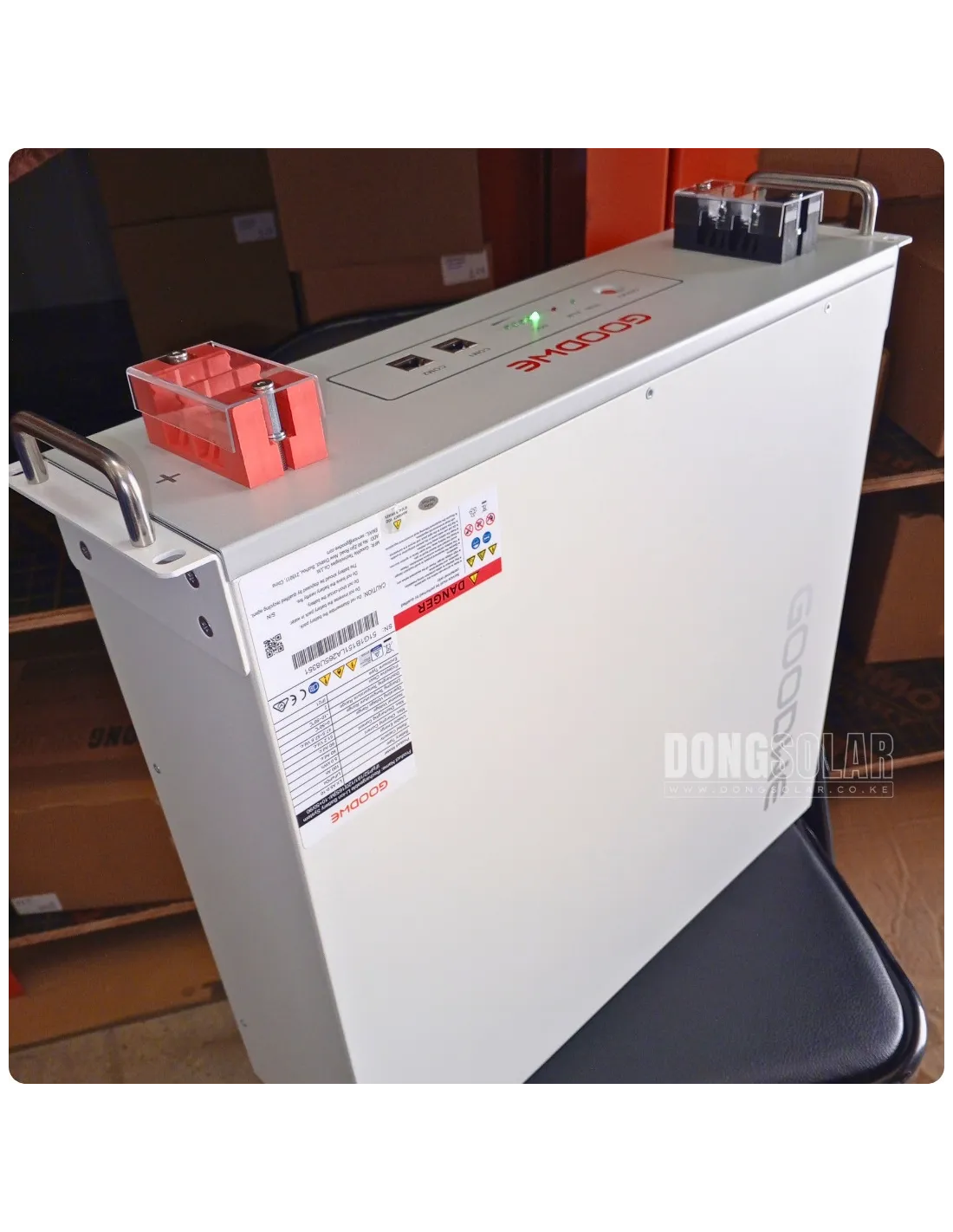

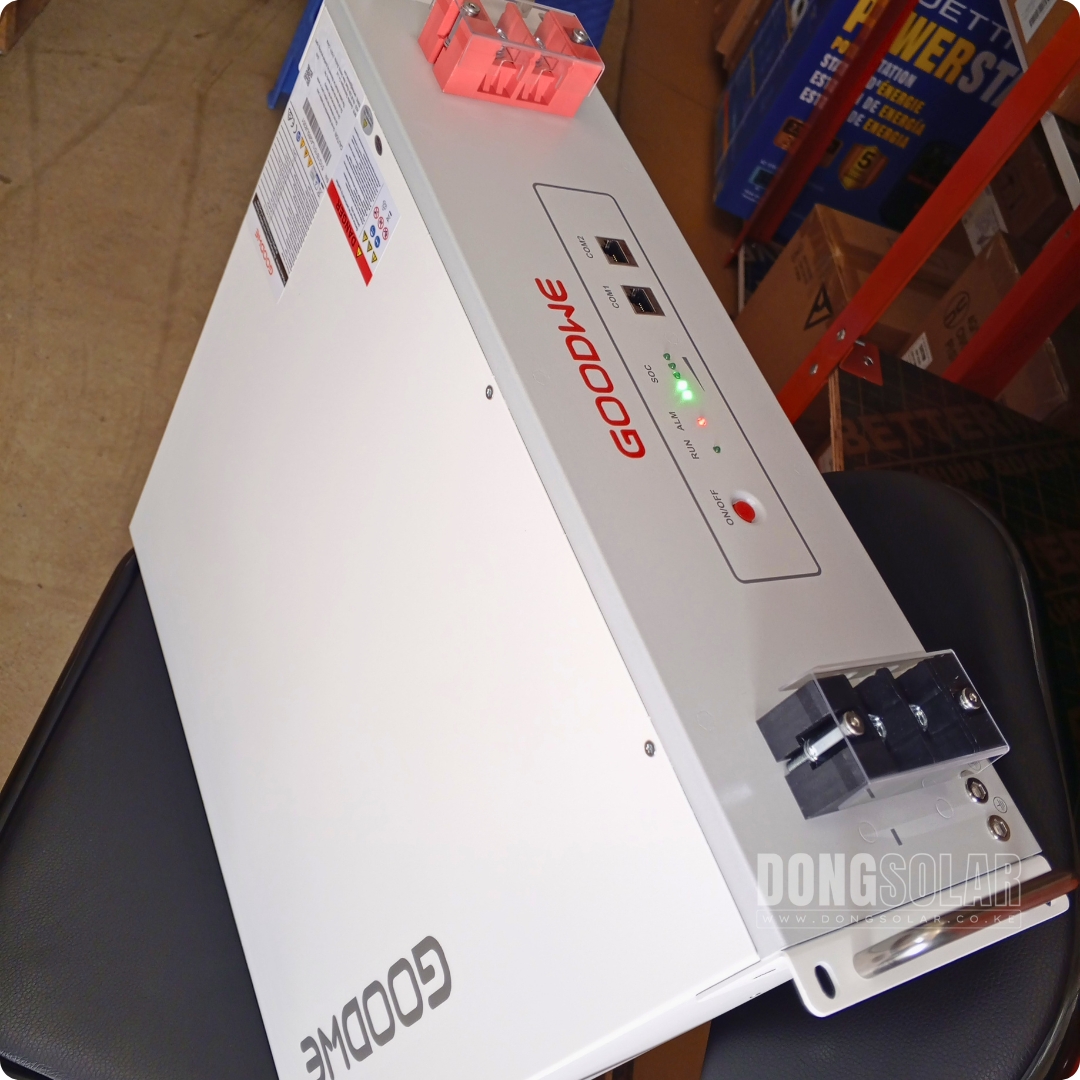

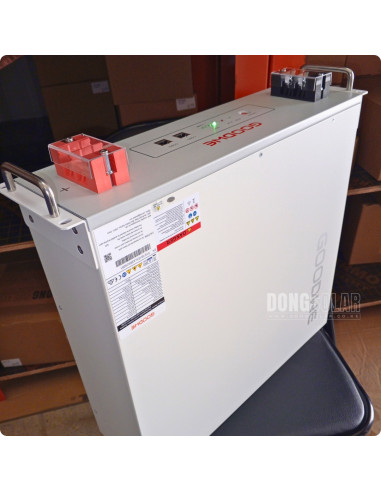

GoodWe Lynx A Series LX A5.0-10 Low-Voltage LFP Battery (5.0kWh Module)

Maximize your solar self-consumption and secure reliable backup power with the GoodWe Lynx A Series LX A5.0-10. Powered by safe, high-density Lithium Iron Phosphate (LFP) Cell-to-Pack (CTP) technology, this 5.12kW / 5.0kWh low-voltage battery offers scalable expansion, smart remote management, and seamless integration with GoodWe residential storage inverters.

Why Choose the GoodWe Lynx LX A5.0-10?

🔋 Ultra-Safe LFP & CTP Technology

Utilizes reliable Lithium Iron Phosphate (LiFePO4) chemistry with an advanced Cell-to-Pack (CTP) design, providing enhanced thermal stability, long cycle life, and high energy density in a compact frame.

📈 Modular & Scalable Storage

Start with a single 5.0kWh module and easily expand system capacity by paralleling up to 15 modules (n × 5.0kWh) using a battery combiner box to meet growing power demands.

🛠️ Compact & Friendly Design

At just 40 kg per module with built-in hanger brackets, it supports flexible, space-saving cabinet or landing-stacked installations for clean residential setups.

💡 Smart Control & Auto-Reboot

Supports remote diagnostics and firmware updates through the inverter, featuring intelligent auto-reboot recovery following undervoltage conditions.

Key System Features

Optimized Charge Performance: Rated for 60A continuous charge and discharge current (3kW power output per 5.0kWh module).
High Electrical Safety: Integrated insulation resistance testing and certified to strict international standards including IEC 62619 and IEC 63056.
High-Speed Communication: Uses robust CAN bus communication for real-time BMS parameter sharing with GoodWe storage inverters.
Wide Working Temperature: Discharge support down to -10°C and up to +50°C, with charge operating range from 0°C to +50°C.

Technical Specifications

Feature Parameter	1x Module (LX A5.0-10)	2x Modules (2*LX A5.0-10)
Usable Energy	5.0 kWh	10.0 kWh (Expandable up to 15x)
Battery Cell Type	LFP (LiFePO4) Cell-to-Pack (CTP)
Nominal Voltage	51.2 V (Operating Range: 47.5 V – 57.6 V)
Nominal Power	3.0 kW	6.0 kW
Nominal Dis-/Charge Current	60 A	120 A
Communication Protocol	CAN
Ingress Protection Rating	IP21
Operating Temperature	Charge: 0 to +50°C \| Discharge: -10 to +50°C
Dimensions (W x H x D)	442 x 133 x 420 mm (483 x 133 x 452 mm with hanger)
Weight	40 kg	80 kg
Safety Standards	IEC62619, IEC63056, IEC62040-1, UN38.3

GoodWe 5kWh Lynx Home A Series Lithium Battery G1 LV LX A5.0-10 | 51.2V LiFePO4

GoodWe 5kWh Lynx Home A Series Lithium Battery LX A5.0-10 | 51.2V LiFePO4

Product Details

Battery Capacity: 5kWh
Battery Type: LiFePO4 (Lithium Iron Phosphate)
Weight: 40Kgs
Dimensions: 483mm × 133mm × 452mm
Warranty: 10 Years
General: Mounting via Cabinet / landing stacked
Please see Datasheet Attached Below
Battery Nominal Voltage: 51.2v

Brand

Reference LX A5.0-10

In stock 1 Item

MPN LX A5.0-10

Attachments

LX A5.0-10 Datasheet

Download (413.75KB)
