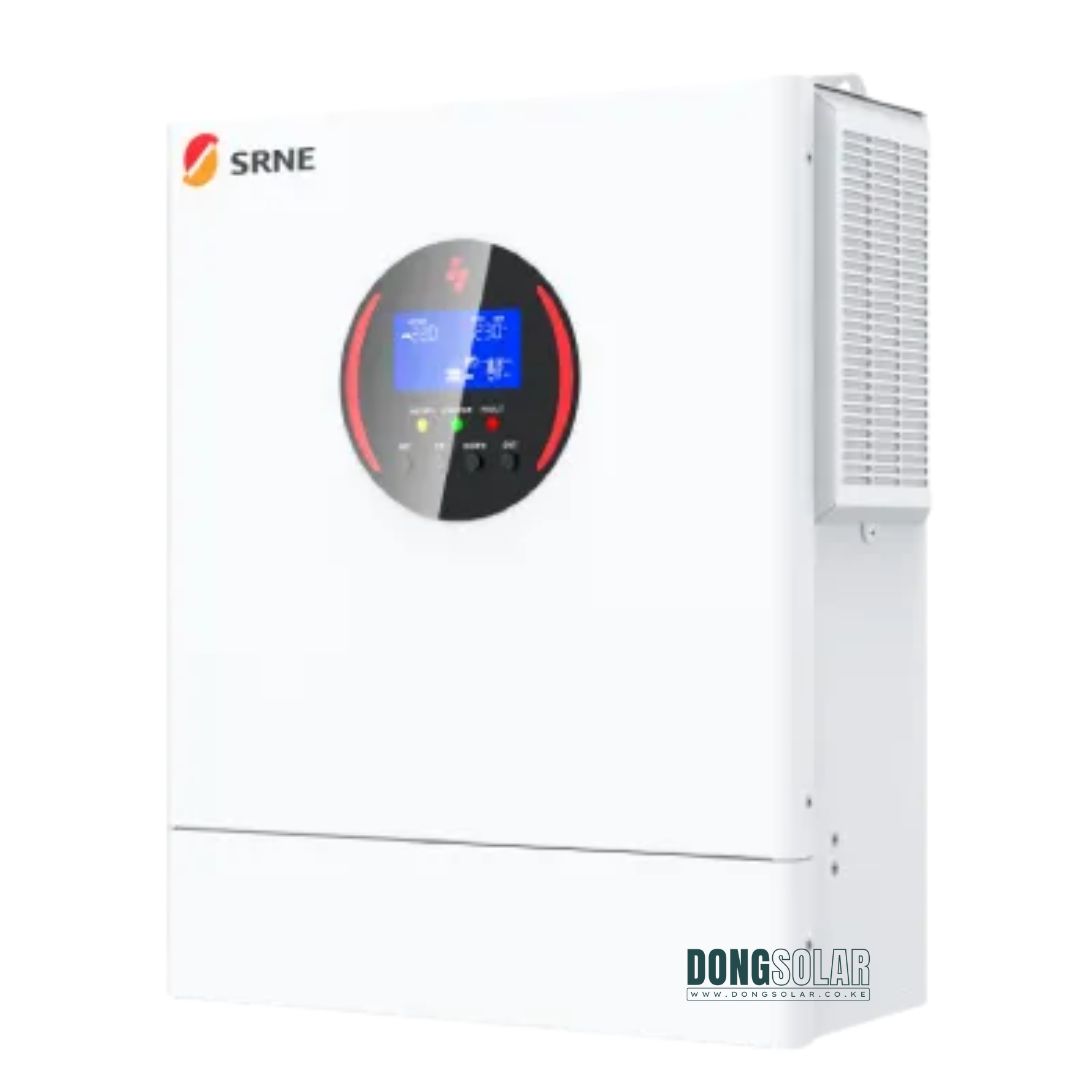

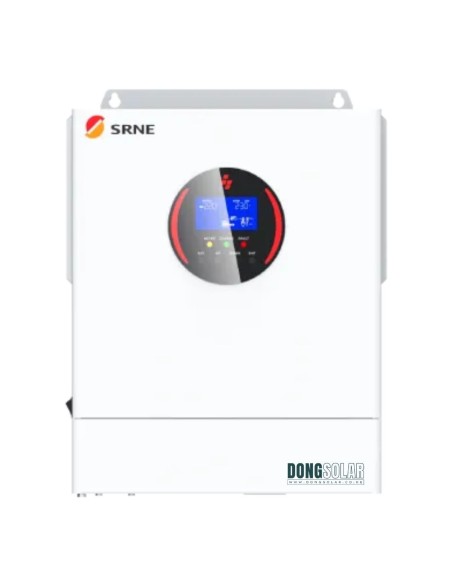

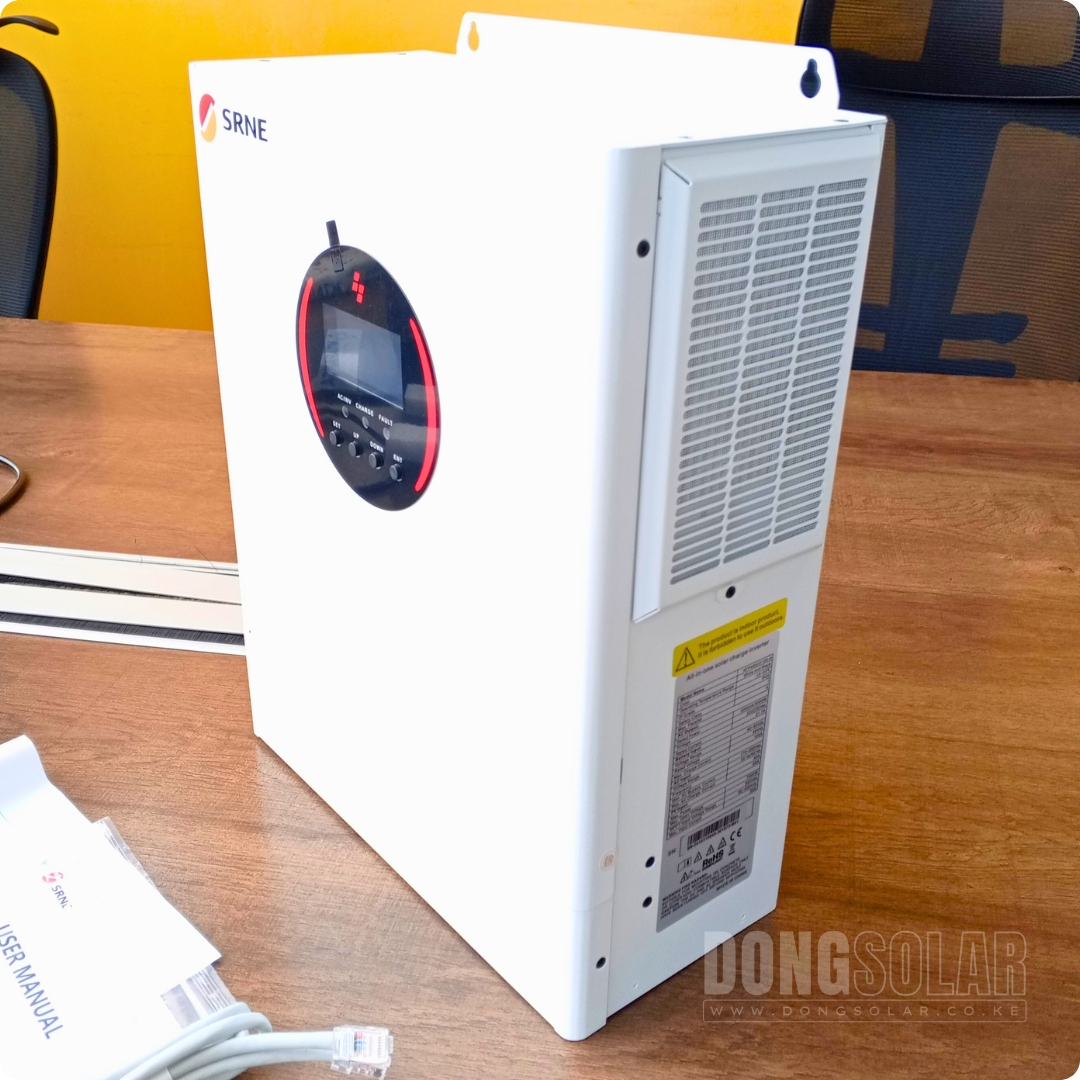

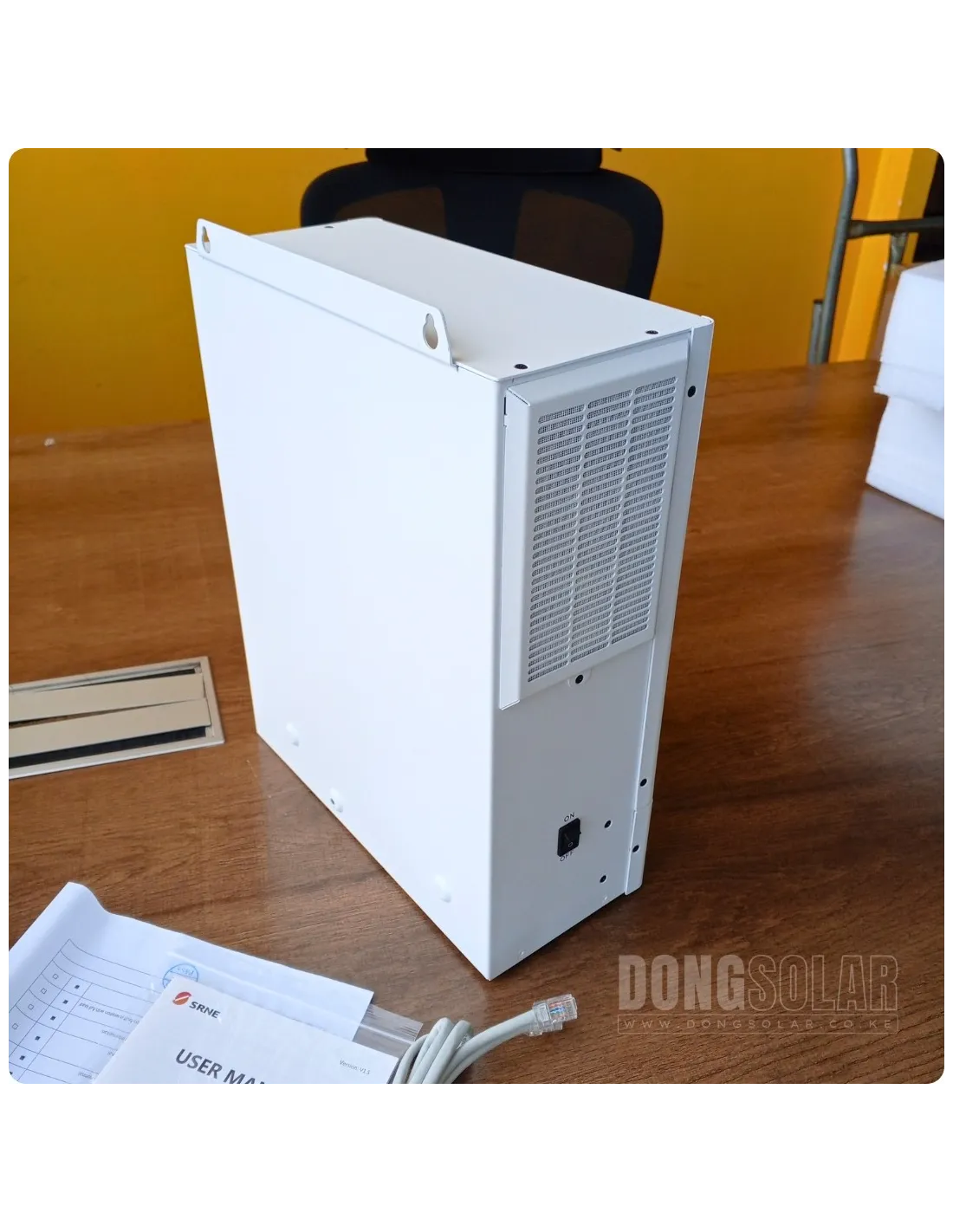

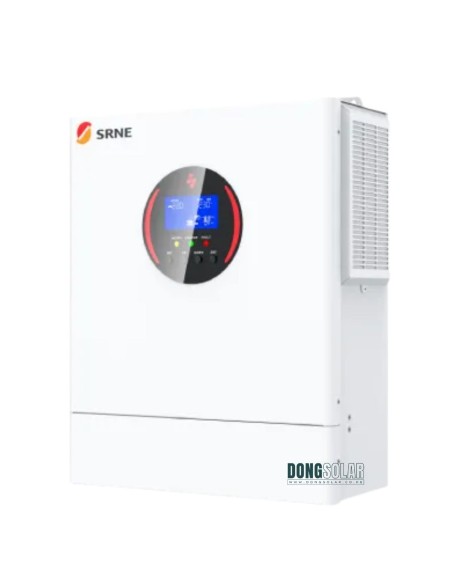

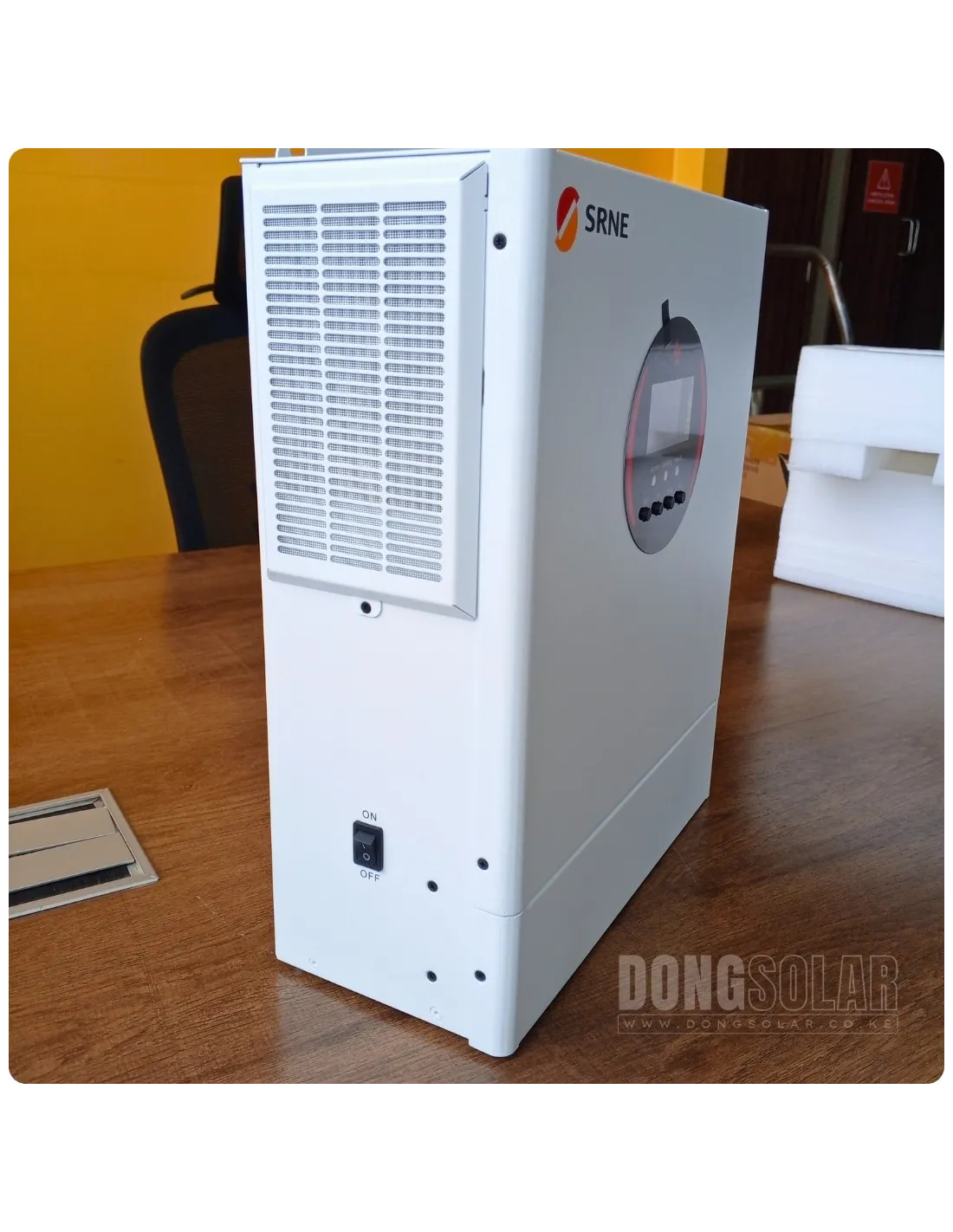

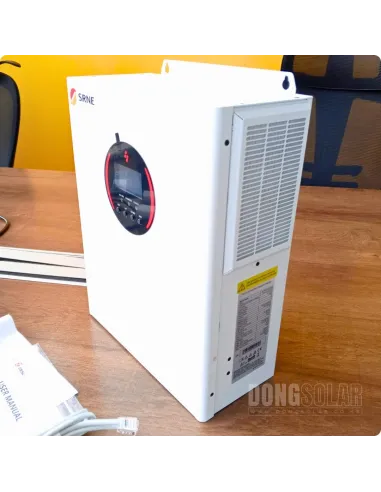

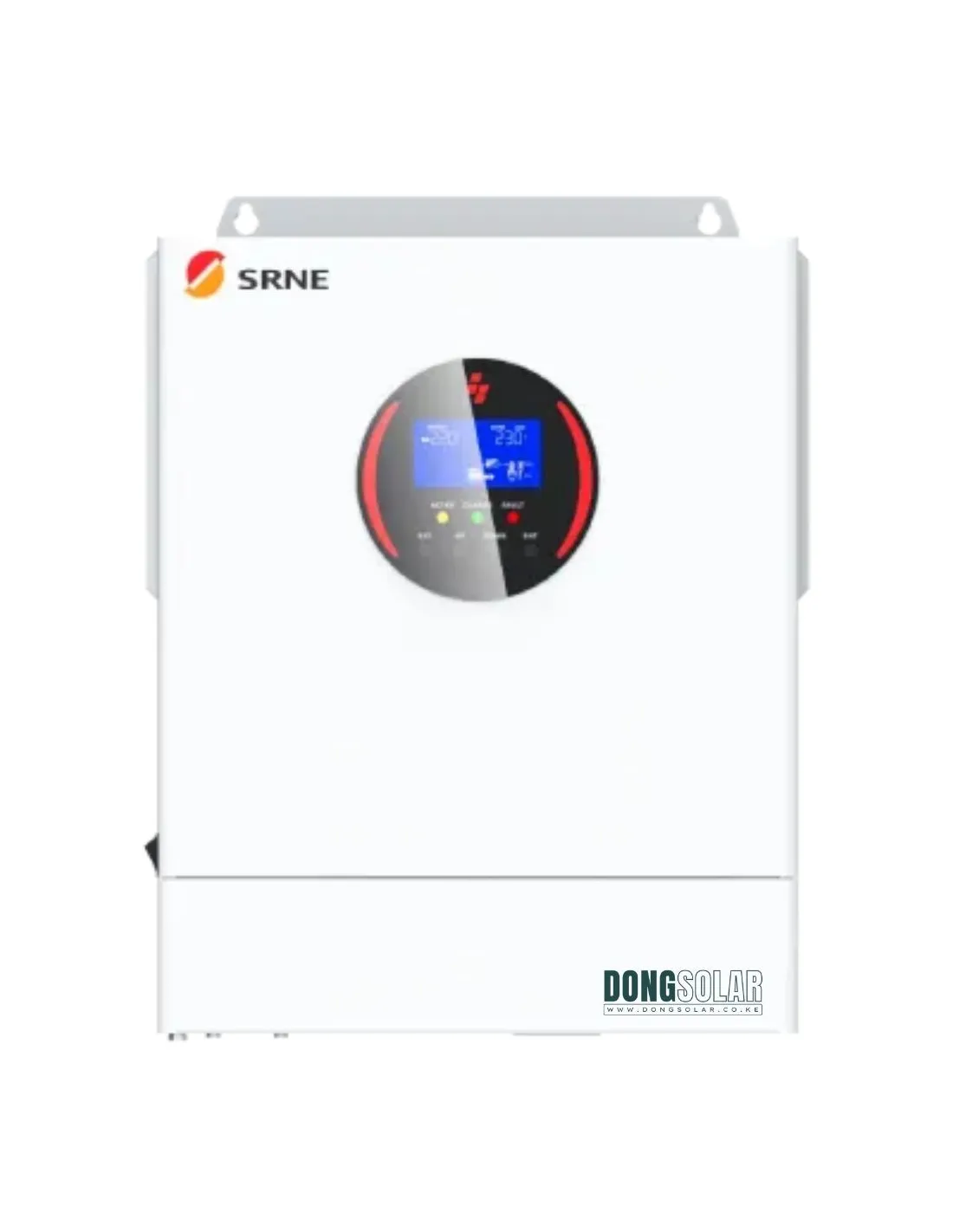

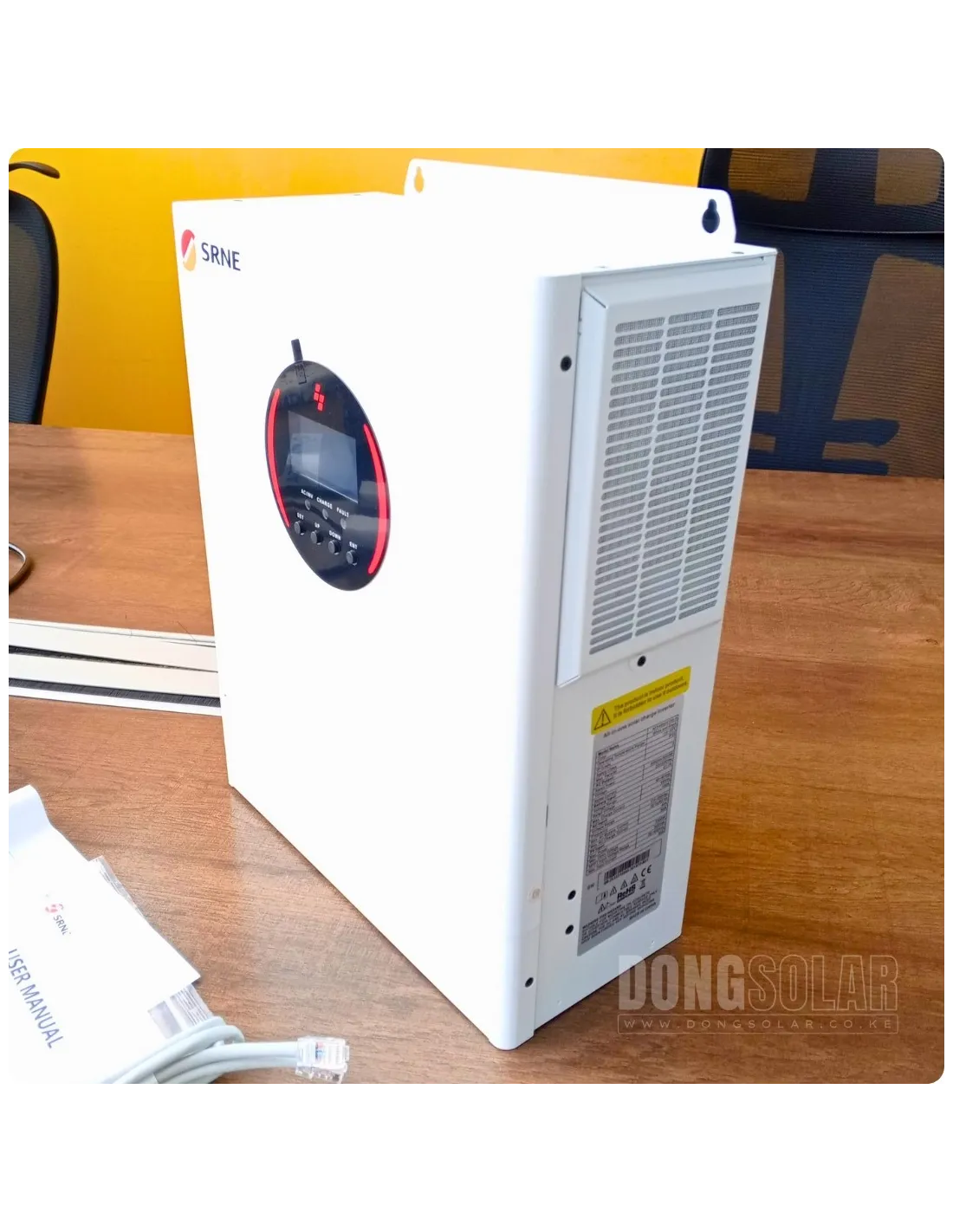

SRNE 5kW Hybrid Solar Inverter | AFP4850S100-H

Video

SRNE 5kW Hybrid Solar Inverter | AFP4850S100-H

Name: SRNE 5kW Hybrid Solar Inverter | AFP4850S100-H
Brand: SRNE
SKU: AFP4850S100-H
Price: 60000 KES
Availability: InStock

Last items in stock

KES60,000.00

Tax included

☀️ 5kW 48V All-In-One Hybrid Inverter

High-performance pure sine wave inverter with integrated MPPT charge controller and smart grid-bypass.

☀️ 5000W AC Output

⚡ 5000W PV Input

🔋 100A MPPT

⚡ Pure Sine Wave

<10ms
UPS Transfer Time

500V
Max PV Voltage

120~450V
MPPT Voltage Range

99.9%
MPPT Efficiency

⚡ 100A MPPT & Dual Charging Modes Integrated 100A MPPT solar controller supporting lithium and lead-acid 48V batteries with customized charging stages.	☀️ High-Voltage 500V PV Input Wide 120–450V MPPT tracking window allows longer panel strings for easier installation and reduced wiring losses.
📶 Instant UPS Switching & Grid Bypass Rapid <10ms transfer time protects sensitive equipment. Seamless bypass charging from grid or backup generator.	🌧️ Comprehensive Protection & LCD Control Full electronic protections against overload, short circuit, and reverse polarity. Dynamic status LCD screen with RS485/CAN communication.

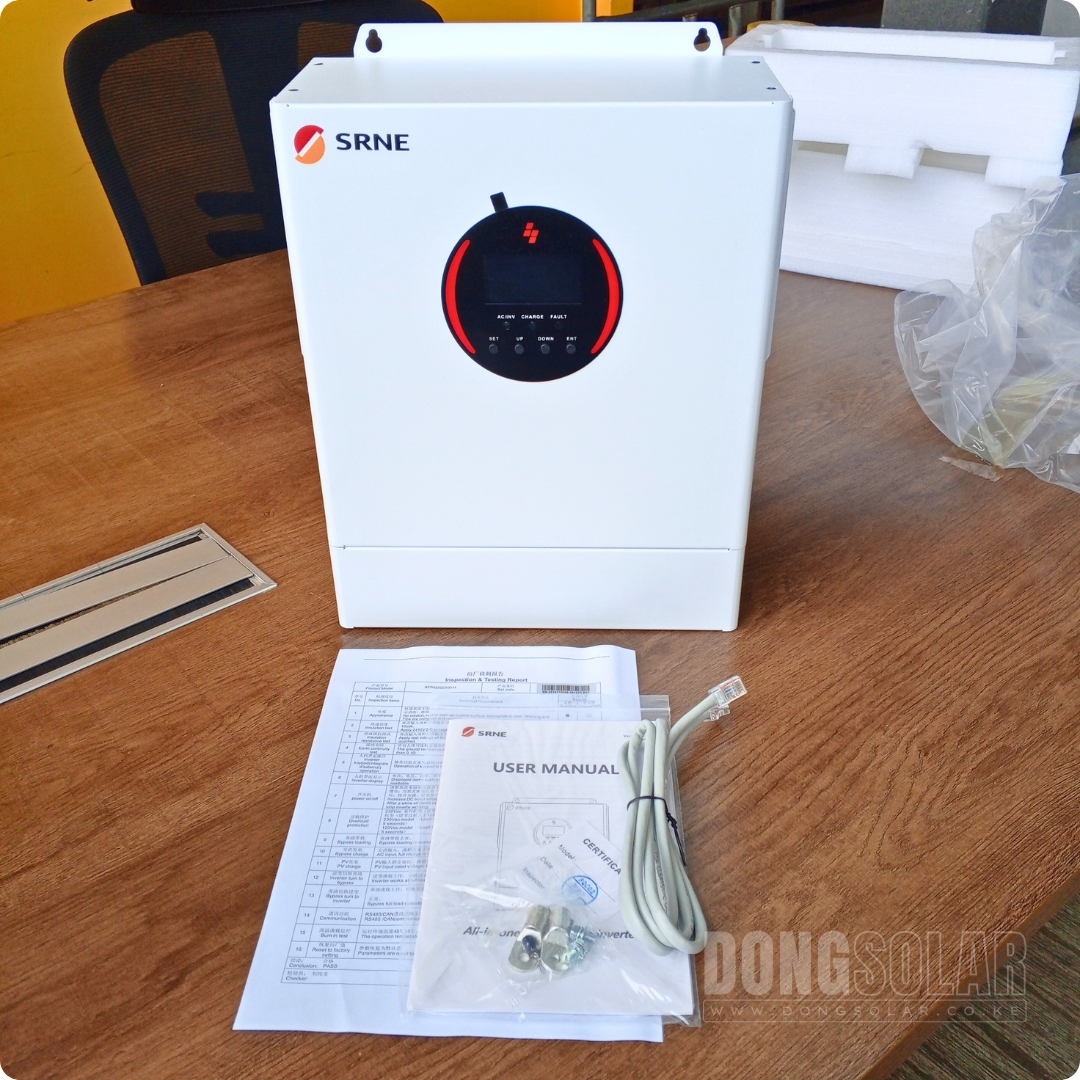

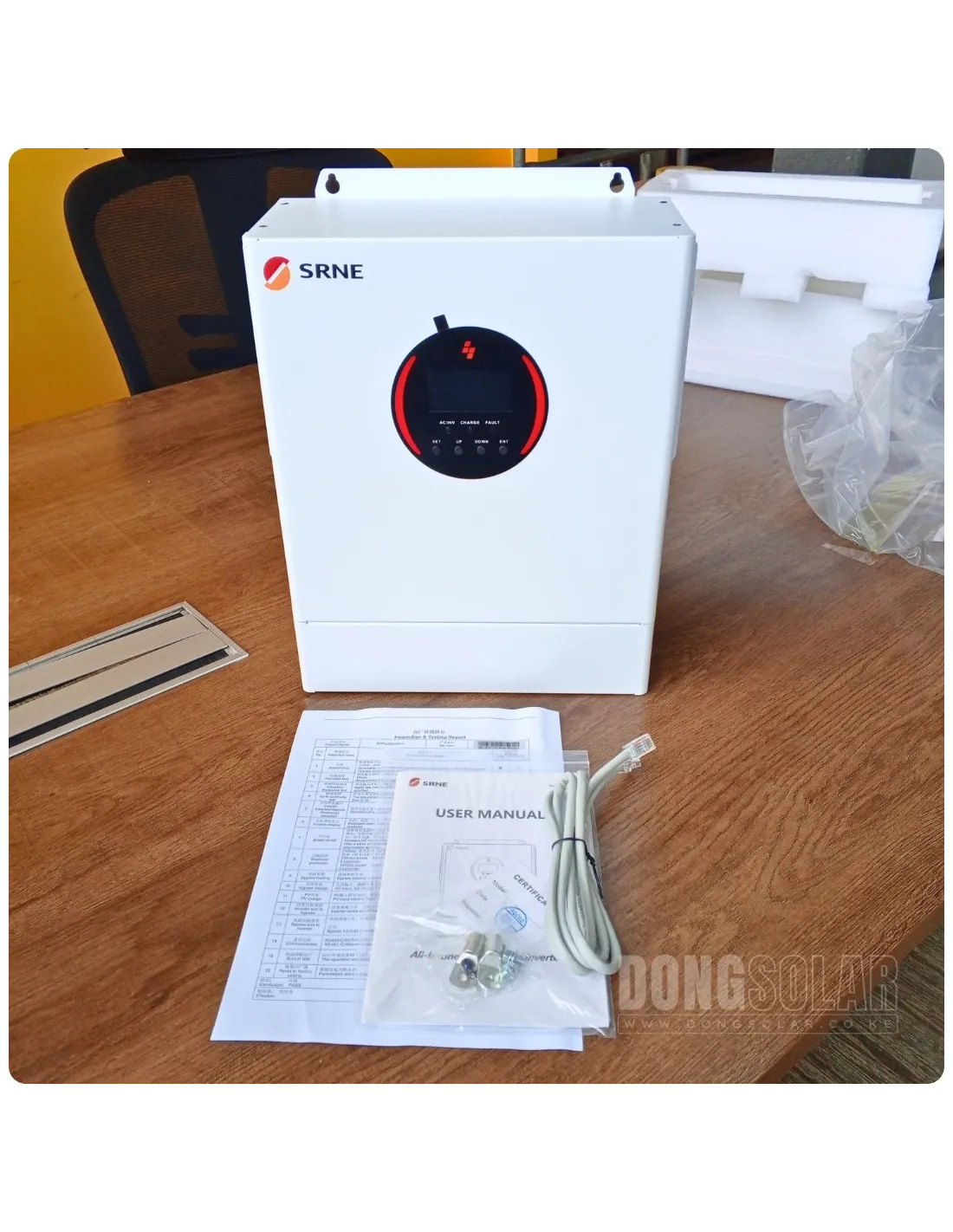

📦 In the Box: SRNE AFP4850S100-H All-In-One Inverter ▸ Mounting Hardware ▸ User Manual | 48V Low Voltage System

Variants

SRNE 1.5kW Hybrid Solar Inverter | HF1215S60-108

SRNE 3kW Off-Grid Solar Inverter 24V | HF2430560-108

SRNE 12kW Hybrid Solar Inverter Three Phase | HESP48120SH3

Description

SRNE AFP4850S100-H 5kW Single-Phase HYbridSolar Storage Inverter

Power your applications with the SRNE AFP4850S100-H. This single-phase solar storage inverter delivers a rated output power of 5000W and is fully compatible with 48V storage batteries. Featuring multiple charging and on-load modes to maximize energy use, efficient heat dissipation with adjustable air speeds to prolong system life, and support for remote monitoring of equipment operating parameters, it provides a reliable solution for independent energy systems backed by a 2-year manufacturer warranty.

Why Choose the SRNE AFP4850S100-H?

⚡ High-Voltage Solar Input

Features 1 MPPT tracker supporting up to 7500W max PV input power, a 500Vdc max open circuit voltage, and a 60–450Vdc MPPT range.

🔋 Robust Hybrid Charging

Supports Lead-Acid or Li-ion 48V batteries with a 40–58Vdc voltage range, 60A max grid/generator charging, and 100A max hybrid charging current.

🔄 Motor Load Capacity

Engineered to handle heavy loads with a 4HP load motor capacity, pure sine wave output, and a fast 10ms switch time.

🛡️ Advanced Protection Suite

Equipped with comprehensive safeguards including PV current limits, anti-reverse charging, utility over/under-voltage controls, and short-circuit protection.

Advanced Features & Functions

Power Output: Delivers 5000W rated output power with a max peak power capacity of 10000VA.

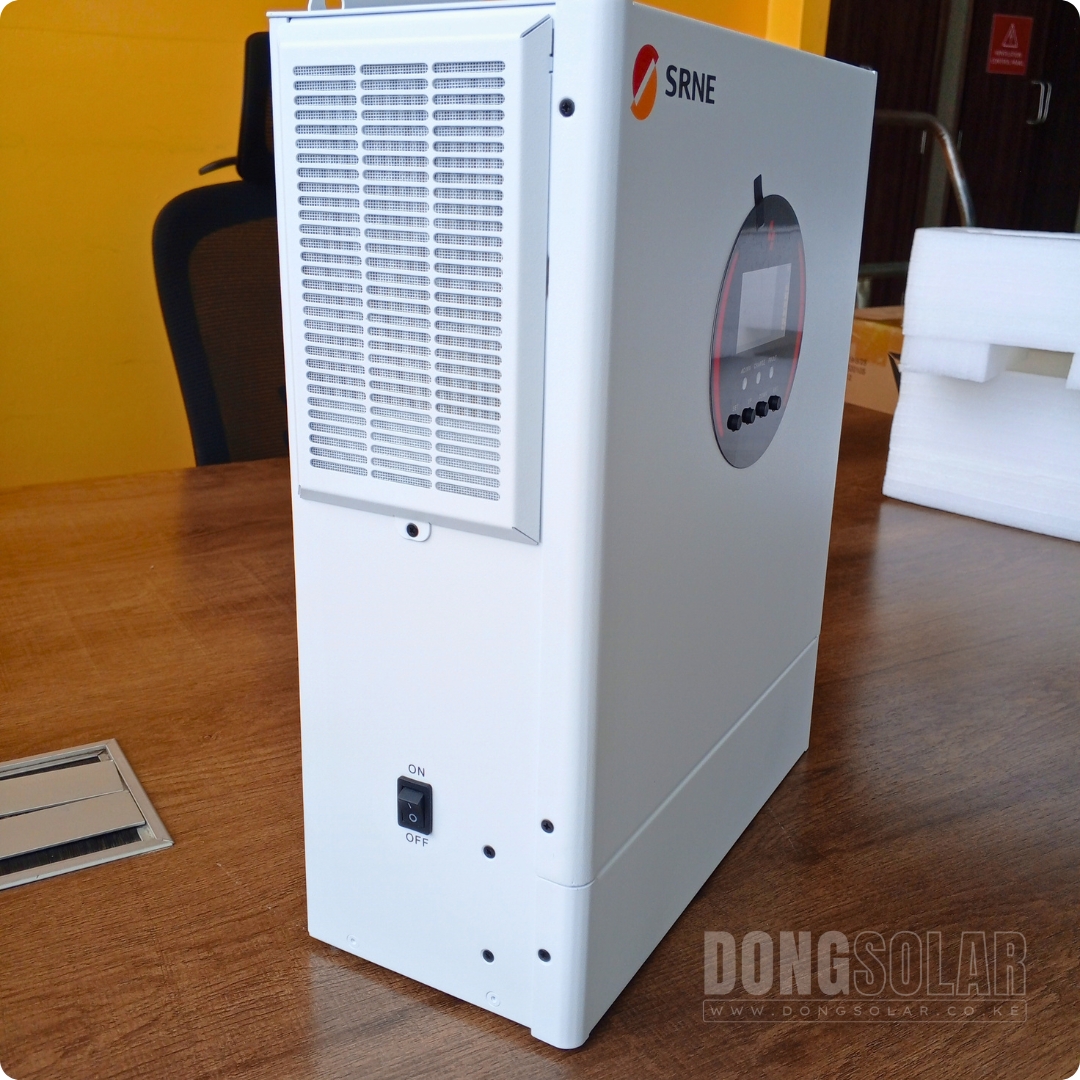

Efficient Cooling Design: Utilizes forced air cooling with adjustable air speed to maintain thermal stability.
Remote Connectivity: Integrates multiple communication options including USB, RS485, WiFi, and Dry Control.
Indoor Durability: Built for indoor deployment with an IP20 protection degree and internal protection by three-proof paint.

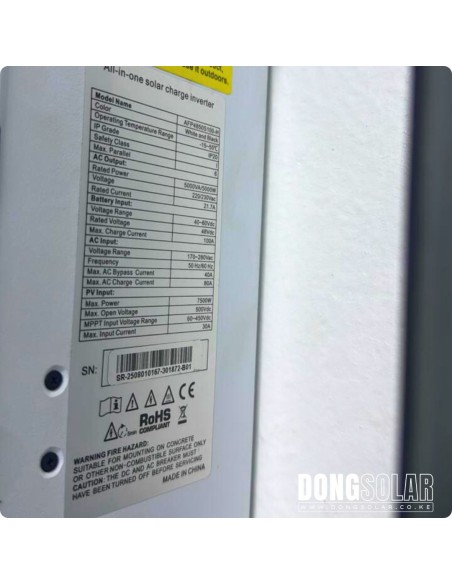

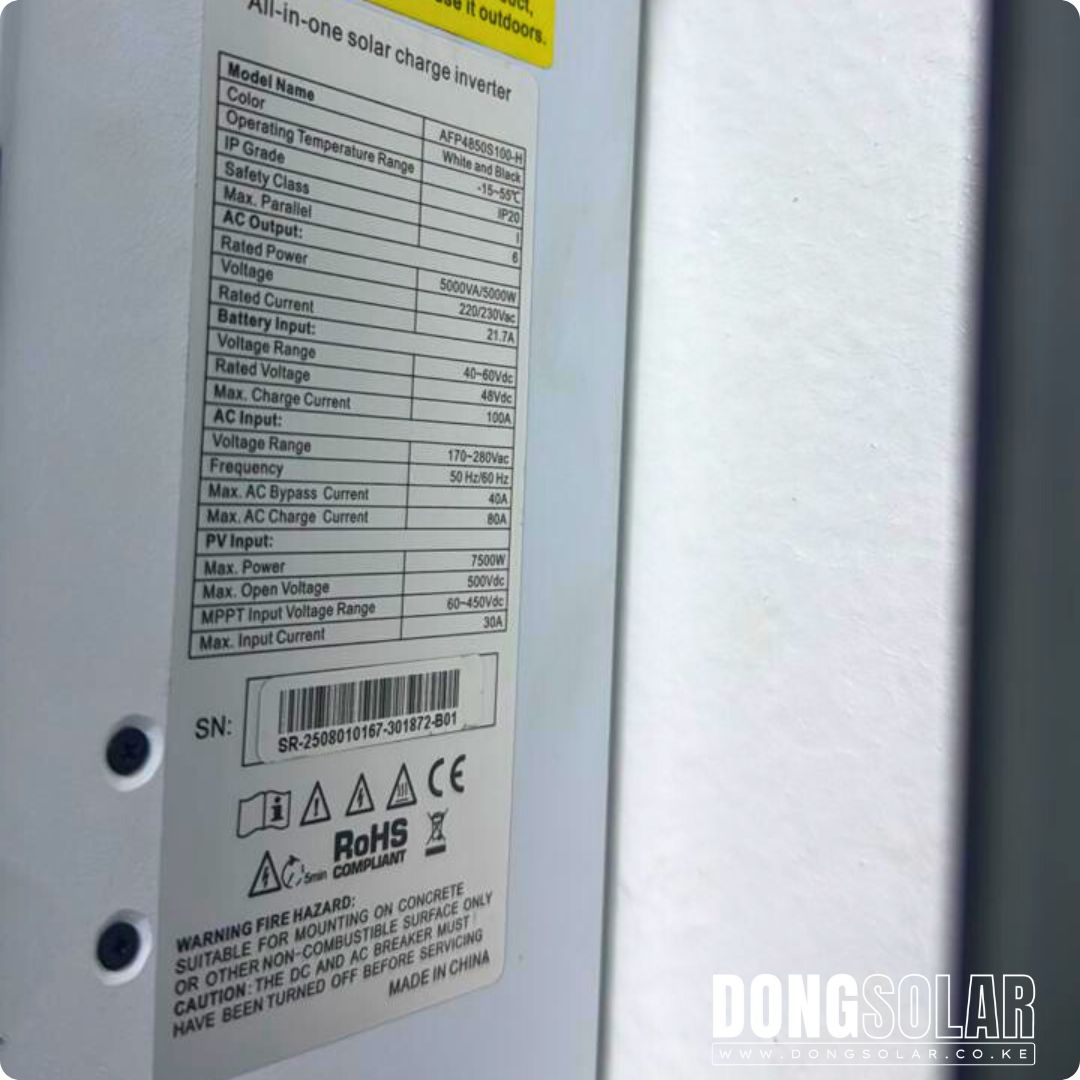

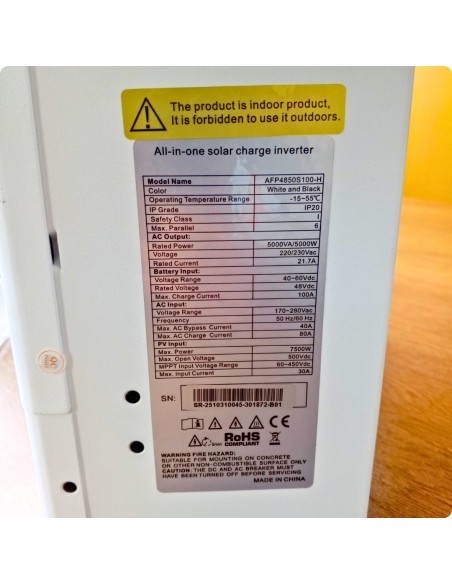

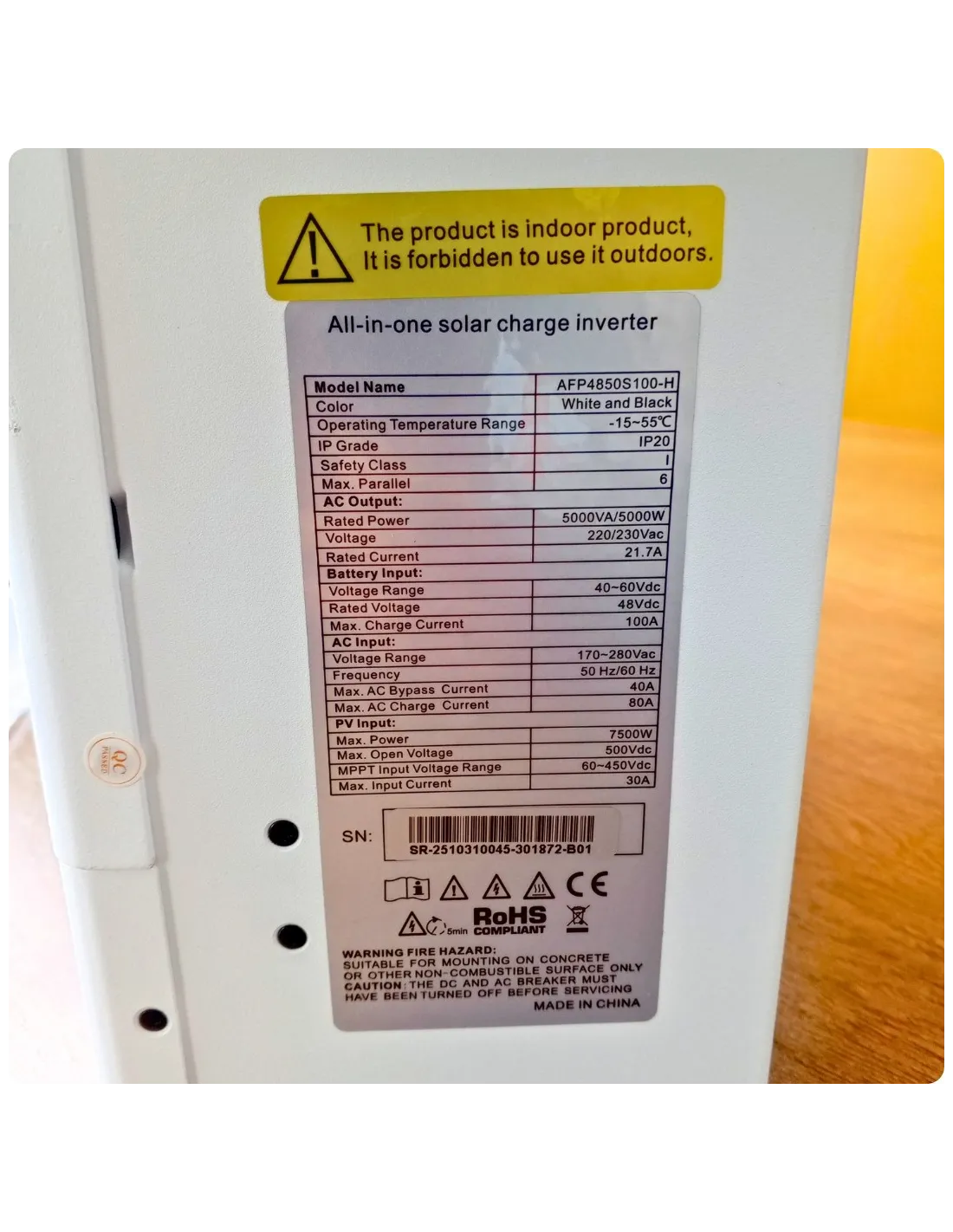

Technical Specifications

Specification	SRNE AFP4850S100-H Details
Rated Output Power & Peak	5000W \| Max Peak Power: 10000VA
Battery Type & Voltage Range	Lead-Acid / Li-ion \| 48V Rated (40~58Vdc Range)
Charging Current	Max. Grid/Generator: 60A \| Max. Hybrid Charging: 100A
Solar Input Specs	Max. PV Input Power: 7500W \| Max Open Circuit Voltage: 500Vdc
MPPT Range & Efficiency	60~450Vdc \| MPPT Tracking Efficiency: 99.9%, Max Efficiency: >92%
Operating Environment	-10°C~55°C (>45°C Derating) \| IP20 Indoor Only
Certifications & Warranty	IEC62109-1/-2, EN61000-6-1/-3, FCC 15 Class B \| 2-Year Warranty
Dimensions & Weight	359.5 × 210 × 133 mm \| 10 kg

SRNE 5kW Hybrid Solar Inverter | AFP4850S100-H

Product Details

Battery Type: Can use Lithium or Lead Acid
Solar Charge Input: 7500Watts 60-450V
Weight: 10Kgs
Dimensions: 360mm * 210 mm * 133mm
Warranty: 2 Years
Watts: 5,000Watta Surge 10,000Watts 4HP
General: Please see Datasheet Attached Below

Brand

Reference AFP4850S100-H

In stock 1 Item

MPN AFP4850S100-H

Attachments

SRNE AFP4850S100-H Datasheet

Download (2.43MB)

SRNE AFP4850S100-H User Manual

Download (7.72MB)
